5CEBA7M15C7N

Overview

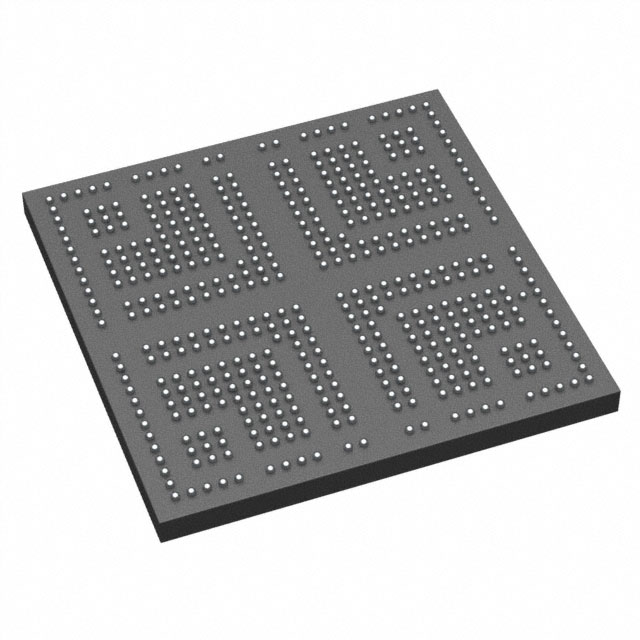

The Altera 5CEBA7M15C7N is a Cyclone V E Field Programmable Gate Array (FPGA) IC featuring 240 I/Os and housed in a 484-LFBGA package. It contains 149,500 logic elements and 7,880,704 total bits of RAM. The device operates on a supply voltage ranging from 1.07V to 1.13V and supports a junction temperature range of -40°C to +125°C.

Feature Summary

• Built on a low-power fabrication process for energy efficiency
• Features an enhanced FPGA fabric with integrated high-speed transceivers
• Supports variable voltage operation within specified limits

Applications

• Industrial control systems
• Communication infrastructure equipment
• Automotive electronics applications

Procurement Notes

Verify the specific suffix 'C7N' against official Altera documentation to confirm the extended industrial temperature range (-40°C to +125°C). Ensure the 484-LFBGA package dimensions match the target PCB footprint. Confirm RoHS compliance status through current manufacturer notices before finalizing procurement specifications.

Selection Notes

Select this component when high logic density combined with industrial-grade thermal performance is required. The Cyclone V E series offers a balance of cost and power efficiency suitable for complex digital signal processing tasks. Evaluate the 149,500 logic element capacity against design requirements to ensure sufficient resource availability for implementation.

Part Context

This part belongs to the Cyclone V E family, which targets cost-optimized and power-efficient applications. It complements other variants like the 5CEBA4U15C7N by offering higher logic capacity and a different package form factor. The series is designed for embedded control and connectivity solutions requiring reliable operation in demanding environments.

Replacement Considerations

Direct substitutes include other Cyclone V E devices such as the 5CEBA7F23C7N, though pinout and package differences must be evaluated. Cross-reference with Intel's official replacement guides to ensure functional equivalence and compatibility with existing design files.
