5CEBA9F27C7N

Overview

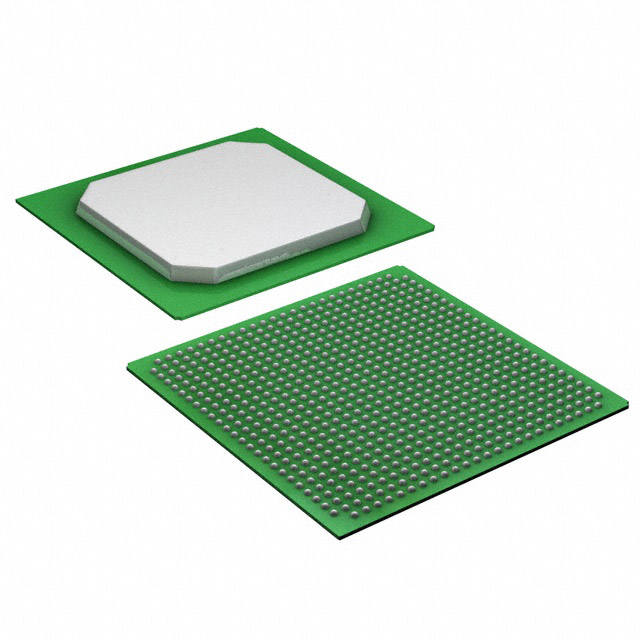

The Altera 5CEBA9F27C7N is a Cyclone V E field-programmable gate array (FPGA) IC manufactured by Intel. It features 301,000 logic elements and 113,560 adaptive logic modules within a 672-ball fine-pitch ball grid array (FBGA) package measuring 27x27 mm. The device includes 14,251,008 bits of total embedded memory and supports 336 I/O pins. It operates on a supply voltage range of 1.07V to 1.13V and functions at junction temperatures between 0°C and 85°C.

Feature Summary

• High-density programmable logic architecture utilizing 28nm technology for enhanced performance per watt.
• Large embedded memory capacity supporting complex data buffering and storage requirements.
• Extensive I/O interface availability enabling connectivity with diverse peripheral components.

Applications

• Industrial automation control systems
• Telecommunications infrastructure equipment
• Video processing and broadcast systems

Procurement Notes

Verify the specific package variant and revision level against the manufacturer's latest datasheet before procurement. Confirm that the ordering suffix matches the required pinout and thermal specifications. Ensure compliance with RoHS directives and check for any recent product change notices affecting labeling or material composition.

Selection Notes

Select this component when high logic density and extensive I/O counts are required within the Cyclone V E family. Compare against smaller variants in the 5CEBA series if resource utilization is lower. Consider the 672-FBGA package constraints regarding PCB layout complexity and thermal management capabilities during the design phase.

Part Context

This part belongs to the Cyclone V E series, which focuses on maximizing logic resources without an integrated hard processor system. It serves as a high-end option within the Cyclone V portfolio, targeting applications needing substantial programmable logic capacity.

Replacement Considerations

Direct substitutes include other 5CEBA9 variants with different packages, such as 5CEBA9F23C7N (484-BGA). Verify pin compatibility and thermal characteristics when considering alternative package options within the same logical family.
