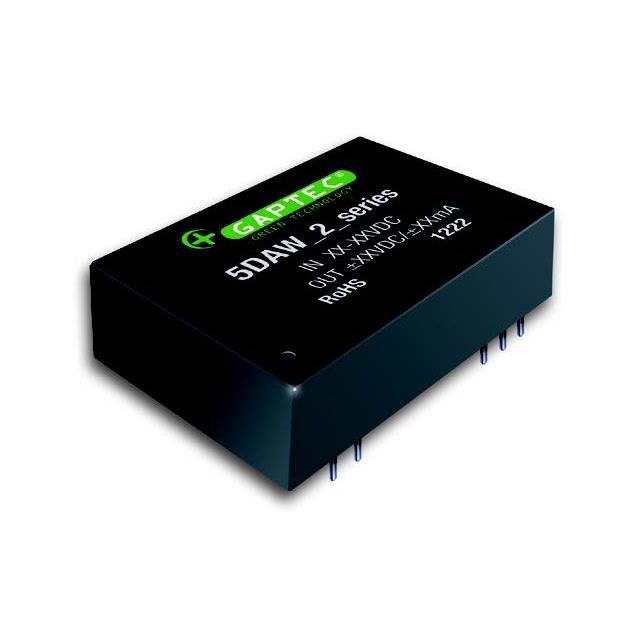

5DAW_4805D6

5DAW_4805D6 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is DC-DC INDUSTRIAL. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 5DAW_4805D6

• Description：DC-DC INDUSTRIAL
• Series：5DAW_2 (5W)
• Mfr：GAPTEC Electronic
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA, 500mA
• Power (Watts)：5 W
• Voltage - Isolation：6.3 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 100°C
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 9 Leads
• Size / Dimension：1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 5DAW_4805D6
