Product Detailed Parameters
- Description：LINE FILTER 250VAC 5A CHASS MNT
- Series：K
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：5:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：516µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

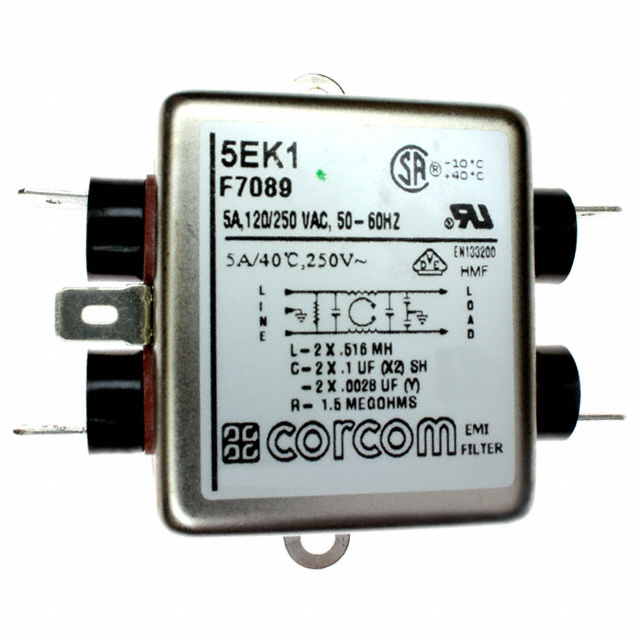

The 5EK1 is a single-phase EMC/EMI line filter manufactured by TE Connectivity Corcom Filters. It operates at 250VAC with a current rating of 5A and supports frequencies of 50/60Hz. The unit features a single-stage configuration with an inductance of 516µH. Designed for chassis mounting, it utilizes quick connect terminals for electrical interfacing. This component is intended for general purpose applications to reduce electrical noise on AC power lines.
Feature Summary
- Single-phase EMI/RFI filtering capability
- Chassis mount installation style
- Quick connect terminal interface
Applications
- General purpose electrical noise reduction
- AC power line interference suppression
Procurement Notes
Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility. Confirm that the required voltage, current, and inductance specifications align with your system design requirements before procurement. Check for any recent product change notices or end-of-life announcements directly from the manufacturer.
Selection Notes
Select this component when a single-stage, single-phase filter is required for 5A circuits operating at 250VAC. Ensure the chassis mounting method and quick connect termination style fit the mechanical and electrical constraints of the enclosure. Verify that the 516µH inductance provides sufficient attenuation for the specific noise profile encountered.
Part Context
This component belongs to the TE Connectivity Corcom Filters series of power line filter modules. These filters are engineered to mitigate electromagnetic and radio frequency interference in AC power systems. The 5EK1 represents a standard solution for general-purpose noise suppression in industrial and commercial equipment requiring reliable EMI performance.
Replacement Considerations
Consult official TE Connectivity documentation for confirmed substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical and mechanical parameters.
FAQ
What is the inductance value of the 5EK1 filter?
The inductance is 516µH.
Is the 5EK1 suitable for three-phase applications?
No, the 5EK1 is a single-phase filter.
