5ER7M

Overview

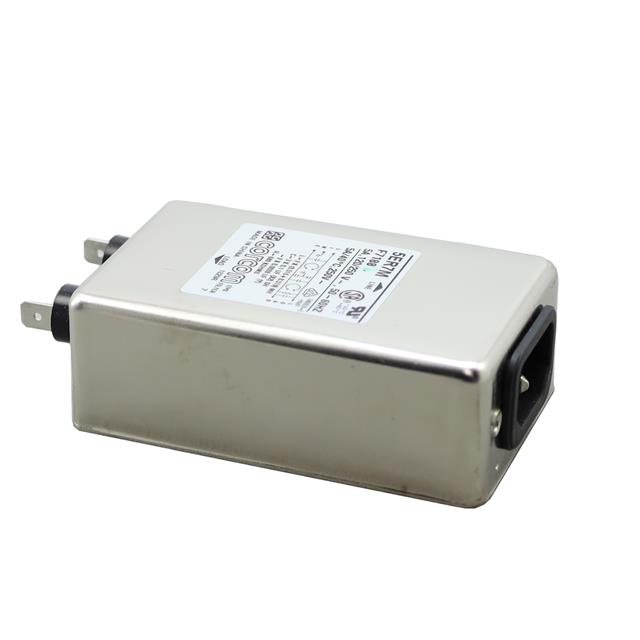

The 5ER7M is a single-phase EMC/EMI line filter from the TE Connectivity Corcom R Series. It provides two-stage attenuation for conducted noise on AC power lines. The component features a rated current of 5 A and operates at 250 VAC with a frequency of 50/60 Hz. It utilizes an IEC 320-C14 input connector and quick connect terminals for output. Designed for chassis mounting, this filter supports general electronic applications requiring reliable power line filtering.

Feature Summary

• Two-stage attenuation architecture for enhanced noise suppression
• Integrated IEC 320-C14 power inlet connector
• Chassis mount installation configuration
• Quick connect terminal interface

Applications

• General electronic equipment power supply filtering
• Industrial control systems
• Medical devices
• Commercial machinery

Procurement Notes

Verify that the replacement part matches the original specifications, including the 5A current rating, 250VAC voltage rating, and two-stage filter configuration. Ensure the IEC 320-C14 inlet and quick connect terminals are compatible with the existing system design. Confirm RoHS compliance status if required by project regulations.

Selection Notes

Select this component when a single-phase filter with a 5A capacity is required. The integrated IEC inlet simplifies wiring compared to discrete filters. Verify that the chassis mounting style fits the enclosure constraints. Consider the operating temperature range and certification requirements such as CSA or VDE before finalizing the selection.

Part Context

This model belongs to the Corcom R Series of single-phase filters. These components are designed for commercial and industrial applications where space-saving integrated solutions are preferred. The series offers various current ratings and voltage options to suit different power line requirements.

Replacement Considerations

FN9246-3-06 is listed as a similar substitute part number.
