Product Detailed Parameters
- Description：LINE FILTER 480VAC/VDC 5A CHASS
- Series：FB
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：480V
- Voltage - Rated AC：480V
- Current：5:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：UL
- Operating Temperature：-40°C ~ 90°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：510µH
- Voltage - Rated AC (Phase to Ground/Neutral)：2.25 kV
- Voltage - Rated AC (Phase to Phase)：2.775 kV
Download product information
Overview

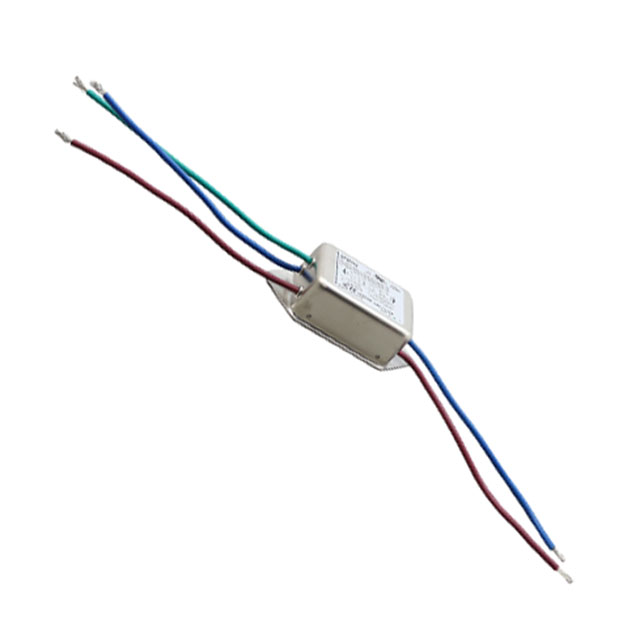

The TE Connectivity Corcom Filters 5FBH3=F8591 is a single-phase EMC/EMI line filter designed for power line conditioning. It features wire lead inputs and outputs, supporting a rated AC voltage of 480V and DC voltage of 480VDC. The unit handles a maximum current of 5A and operates within the 50 to 60Hz frequency range. Constructed as a single-stage filter with chassis mounting capabilities, it provides essential noise suppression for electrical systems requiring robust interference mitigation at these specific electrical ratings.
Feature Summary
- Single-phase EMC/EMI line filtering capability
- Wire lead input and output termination style
- Chassis mount construction design
Applications
- Industrial power distribution systems
- Electrical equipment requiring EMI suppression
- AC/DC power line conditioning applications
Procurement Notes
Verify the exact part number 5FBH3=F8591 against official TE Connectivity documentation to confirm specifications. Ensure compatibility with 480V AC/DC systems and 5A current requirements. Check for RoHS compliance status if required by project standards. Confirm wire lead lengths and chassis mounting dimensions prior to integration into final assemblies.
Selection Notes
Select this component when single-phase filtering is required for 480V systems. Ensure the application environment supports chassis mounting. Verify that wire lead terminations meet connection requirements. Confirm that 5A current capacity aligns with load demands. Validate frequency range compatibility with 50-60Hz operations.
Part Context
This component belongs to the TE Connectivity Corcom FB series of single-phase filters. The series offers various current ratings and voltage configurations for industrial noise suppression. The 5FBH3 variant specifically addresses higher current needs compared to lower-rated models in the same family, providing standardized filtering solutions for demanding power environments.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Ensure replacement parts match 480V AC/DC ratings and 5A capacity. Verify identical wire lead termination styles and chassis mounting requirements to maintain system compatibility without redesign.
