5FBL3

Overview

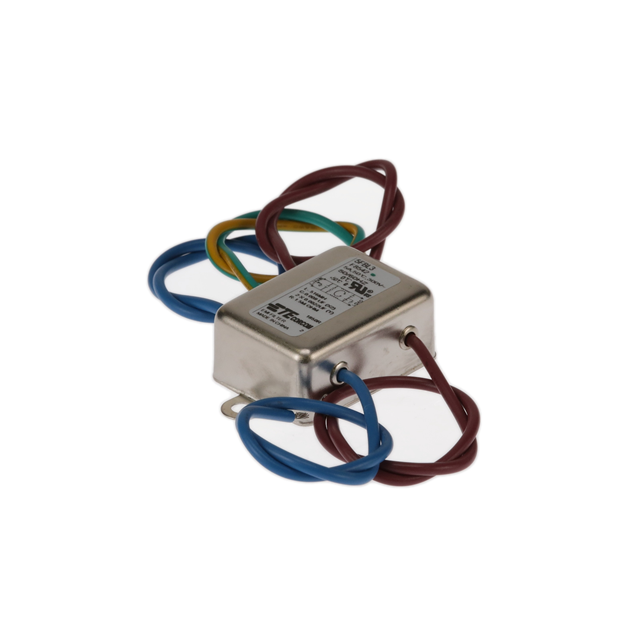

The TE Connectivity Corcom Filters 5FBL3 is a single-phase EMC/EMI line filter module rated for 5 A at 277 VAC/VDC. Designed for chassis mounting, it features wire lead termination and operates within a temperature range of -10°C to 50°C. The unit provides single-stage filtering effective in the 100 kHz to 30 MHz frequency range. It is UL 935 listed, ensuring compliance with industry standards for power line filters.

Feature Summary

• Provides effective attenuation in the 100 kHz to 30 MHz frequency range
• Features UL 935 listing for industry standard compliance
• Utilizes single-stage filtering design for EMI/RFI suppression

Applications

• Lighting systems
• Industrial equipment requiring EMI suppression
• Electronic devices needing power line noise reduction

Procurement Notes

Verify the specific voltage rating (277V) and current capacity (5A) against your system requirements before procurement. Confirm that the wire lead termination style matches your assembly process. Check for UL 935 listing documentation if regulatory compliance is mandatory for your application. Ensure the operating temperature range of -10°C to 50°C suits your environmental conditions.

Selection Notes

Select this component when single-phase EMI/RFI filtering is required for loads up to 5 A at 277 V. Consider the chassis mount form factor and wire lead connections for integration. Evaluate the single-stage attenuation performance against your specific noise spectrum needs, particularly in the 100 kHz to 30 MHz band. Verify compatibility with UL 935 standards if applicable.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, known for power line filtering solutions. The 5FBL3 model specifically addresses single-phase applications requiring moderate current handling and standard EMI suppression. It complements other Corcom modules designed for various industrial and commercial electronic environments.

Replacement Considerations

No public confirmed substitute part numbers are available for the 5FBL3 model based on verified data.
