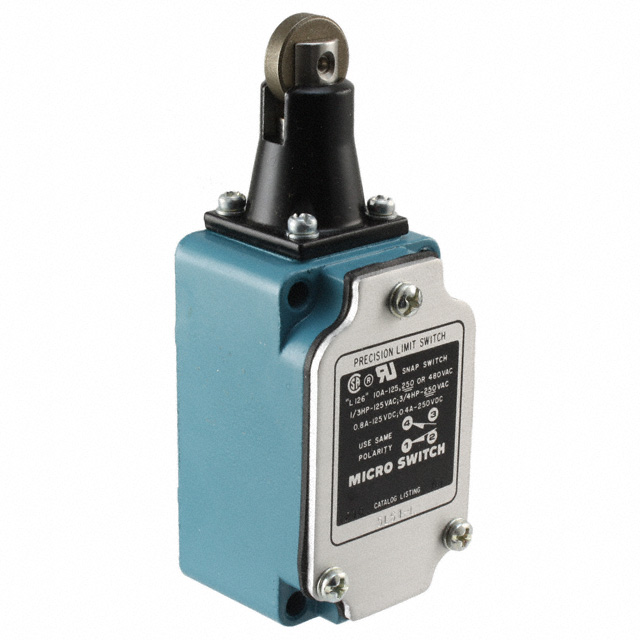

5LS1-L

Product Detailed Parameters

• Description：SWITCH SNAP ACTION SPDT 10A 125V
• Series：LS
• Mfr：Honeywell Sensing and Productivity Solutions
• Package：Bulk
• Circuit：SPDT (DB/DM)
• Switch Function：On-Mom
• Current Rating (Amps)：10A (AC), 800mA (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Roller Plunger
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Force：3175gf
• Release Force：907gf
• Operating Position：1.730" (43.9mm)
• Pretravel：0.065" (1.65mm)
• Differential Travel：0.020" (0.5mm)
• Overtravel：0.219" (5.6mm)
• Operating Temperature：-29°C ~ 71°C
• Voltage Rating - DC：125 V
