5SGXAF40NAB

Overview

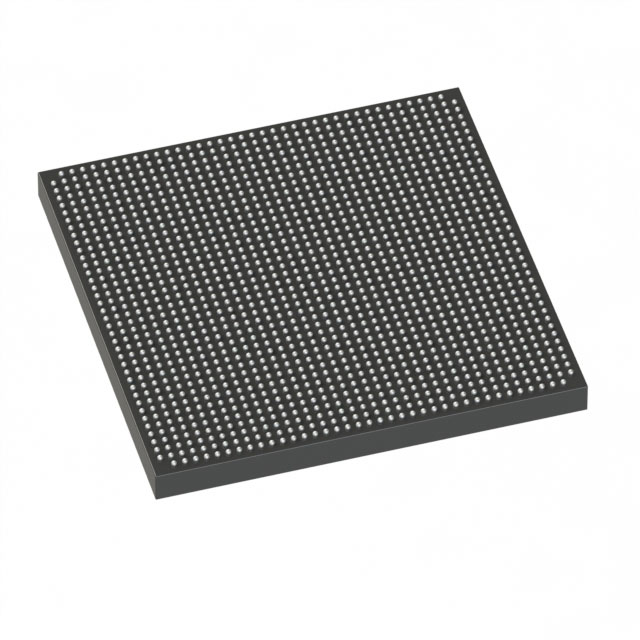

The Altera 5SGXAF40NAB is a Stratix V GX Field Programmable Gate Array (FPGA) designed for high-performance digital logic applications. It features 952,000 logic elements and 359,200 Adaptive Logic Modules within 35,920 Logic Array Blocks. The device includes 62.96 Mbits of total embedded memory and supports up to 696 I/Os. It operates with a core voltage of 850 mV and supports data rates up to 14.1 Gb/s via 36 transceivers. The component is housed in a 1517-pin BGA package and functions within an operating temperature range of 0°C to +70°C.

Feature Summary

• High-density programmable logic architecture with nearly one million logic elements
• Integrated high-speed serial transceivers supporting multi-gigabit data rates
• Substantial on-chip memory capacity for complex data processing tasks
• Robust I/O interface capabilities for extensive system connectivity

Applications

• Complex digital signal processing systems
• High-speed telecommunications infrastructure equipment
• Advanced networking and switching solutions
• Industrial automation control units

Procurement Notes

Verify the specific suffix codes against official Intel/Altera documentation to ensure correct temperature grade and packaging specifications. Confirm current availability status as this component may be subject to end-of-life restrictions or limited supply chains. Request updated datasheets to validate pinout compatibility and electrical characteristics before integration into new designs.

Selection Notes

Select this model when requiring high logic density combined with significant embedded memory resources. Consider the 1517-pin package size constraints during PCB layout planning. Evaluate thermal management requirements due to the high performance levels. Ensure design tools support the Stratix V GX family for proper configuration and verification.

Part Context

This FPGA belongs to the Stratix V GX series, targeting demanding applications requiring substantial computational power and high-speed interconnectivity. It represents a high-end solution within the Altera portfolio, offering scalability for complex system-on-chip implementations. The technology leverages advanced process nodes to deliver performance efficiency.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Users should consult official Intel product selection guides for compatible alternatives or next-generation replacements.
