5SGXEB6R3F40I3N

Overview

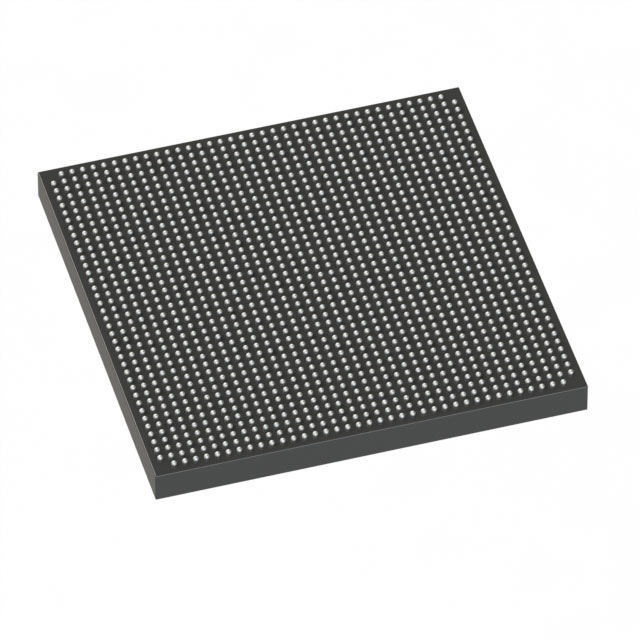

The Altera 5SGXEB6R3F40I3N is a Stratix V GX Field Programmable Gate Array (FPGA) belonging to the 5SGXB6 device family. It features 597,000 logic elements and 225,400 Adaptive Logic Modules (ALMs). The device integrates 52 Mbit of embedded memory and includes 66 high-speed transceivers capable of data rates up to 14.1 Gb/s. It operates within a commercial temperature range of -40°C to +85°C and utilizes a 1517-ball FineLine BGA package.

Feature Summary

• Integrates 66 high-speed serial transceivers supporting advanced modulation formats for long-reach and short-reach applications.
• Provides extensive programmable logic resources through over 597,000 logic elements and dedicated DSP blocks.
• Includes substantial on-chip memory capacity with embedded RAM blocks and register file storage.

Applications

• High-capacity telecommunications infrastructure equipment
• Data center interconnects and server acceleration
• Industrial automation control systems

Procurement Notes

This component is officially listed as End-of-Life (EOL) by the manufacturer. Availability is restricted to existing stock or secondary market sources. Verify RoHS compliance status and moisture sensitivity level (MSL 3) before procurement. Ensure supply chain documentation confirms authenticity due to the discontinued production status.

Selection Notes

Select this part for designs requiring high-density logic combined with significant serial I/O bandwidth. Compare against other Stratix V GX variants based on specific transceiver counts and logic element requirements. Consider thermal management solutions suitable for the 1517-ball FBGA package during the design phase.

Part Context

The 5SGXEB6R3F40I3N belongs to the Stratix V GX family, designed for high-performance serial communication applications. This specific suffix indicates a commercial temperature grade and a standard tray packaging format. It represents a mid-range configuration within the 5SGXB6 series regarding logic density.

Replacement Considerations

As an EOL product, direct replacements are unavailable. Evaluate Agilex or Stratix 10 families for new designs, noting architectural differences in I/O standards and software toolchain compatibility.
