5SGXEB6R3F43I3

Overview

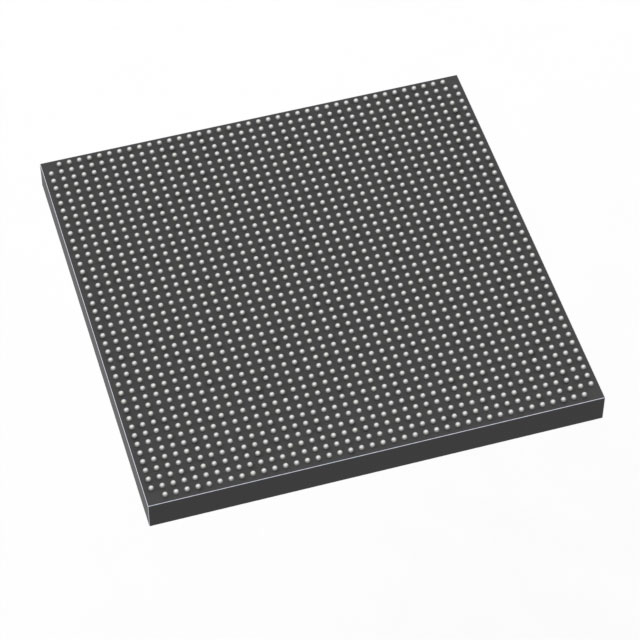

The Altera 5SGXEB6R3F43I3L is a Stratix V GX Field Programmable Gate Array (FPGA) featuring 597,000 logic elements and 225,400 Adaptive Logic Modules. It integrates 52 Mbit of embedded memory, including 6.88 Mbit of embedded block RAM, across 600 I/Os. The device supports data rates up to 14.1 Gb/s via 66 transceivers. Operating at a core voltage of 850 mV, it functions within a temperature range of -40°C to +85°C. The component is housed in a 1760-pin FBGA package.

Feature Summary

• High-density programmable logic architecture with extensive embedded memory resources for complex digital signal processing applications.
• Integrated high-speed serial transceivers supporting multi-gigabit data transmission rates for advanced communication interfaces.
• Robust I/O flexibility with support for various standard protocols through configurable pin assignments.

Applications

• High-performance telecommunications infrastructure equipment
• Enterprise networking switches and routers
• Industrial automation control systems

Procurement Notes

Verify the complete part number, as the input model lacks the final suffix character. Confirm RoHS compliance status and moisture sensitivity level prior to ordering. Check for obsolescence notices or lifecycle changes from the manufacturer. Ensure compatibility with existing PCB footprints and thermal management solutions. Validate supply chain authenticity through authorized distributors.

Selection Notes

Compare logic density and transceiver counts against alternative Stratix V variants to ensure optimal resource utilization. Evaluate power consumption profiles under maximum load conditions relative to available cooling capacity. Assess software toolchain compatibility with Quartus Prime versions. Consider future scalability needs if migrating from previous generation FPGA families.

Part Context

This component belongs to the Stratix V GX family, designed for high-speed serial communications. It succeeds earlier generations like Stratix IV, offering improved performance per watt. The device targets markets requiring significant parallel processing capabilities alongside high-bandwidth serial connectivity.

Replacement Considerations

Direct substitutes may include other Stratix V GX devices with similar I/O counts. Verify pin-to-pin compatibility before considering upgrades to Agilex or Stratix 10 families, which require design re-verification.
