5SGXMA3E3H29I3L

Overview

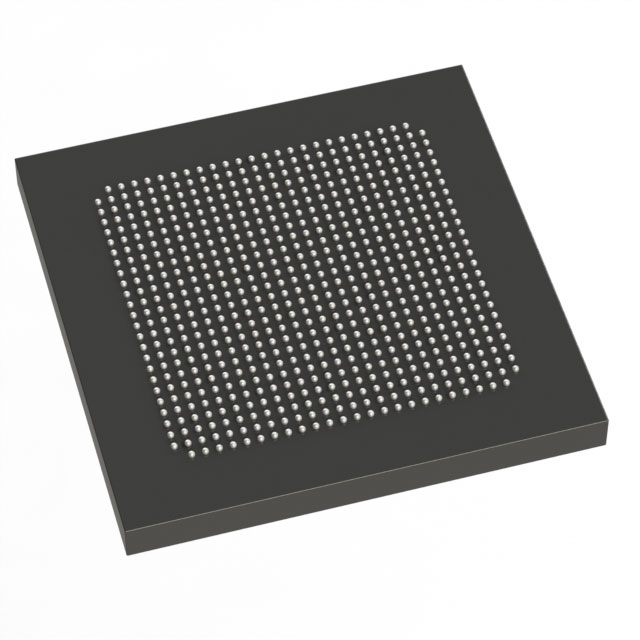

The Altera 5SGXMA3E3H29I3LG is a Stratix V GX Field Programmable Gate Array (FPGA) featuring 340,000 logic elements and 128,300 Adaptive Logic Modules. It integrates 19,456,000 bits of embedded memory and supports up to 600 I/Os. The device operates within a supply voltage range of 0.82V to 0.88V and functions at junction temperatures between -40°C and 100°C. It is housed in a 780-ball FineLine BGA package with dimensions of 33x33 mm.

Feature Summary

• High-density programmable logic architecture supporting complex digital designs
• Integrated high-capacity embedded memory for data buffering and storage
• Robust thermal performance suitable for demanding industrial environments

Applications

• Telecommunications infrastructure equipment
• Industrial automation control systems
• Test and measurement instrumentation

Procurement Notes

Verify the complete part number including all suffixes against official manufacturer documentation to ensure correct configuration. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement. Ensure compatibility with required design software versions such as Quartus Prime.

Selection Notes

Evaluate total logic element count and embedded memory capacity against specific design requirements. Verify that the 780-ball FCBGA package fits within the target PCB footprint constraints. Check operating temperature range suitability for the intended application environment.

Part Context

This component belongs to the Stratix V GX family, designed for high-performance applications requiring significant logic density and connectivity. It serves as an upgrade path from previous generation Stratix devices, offering enhanced resource availability and improved power efficiency characteristics.

Replacement Considerations

Direct pin-to-pin replacements are not publicly confirmed for this specific variant. Consider migration strategies to newer Agilex or Stratix 10 families if long-term supply assurance is required.
