5VK1

Overview

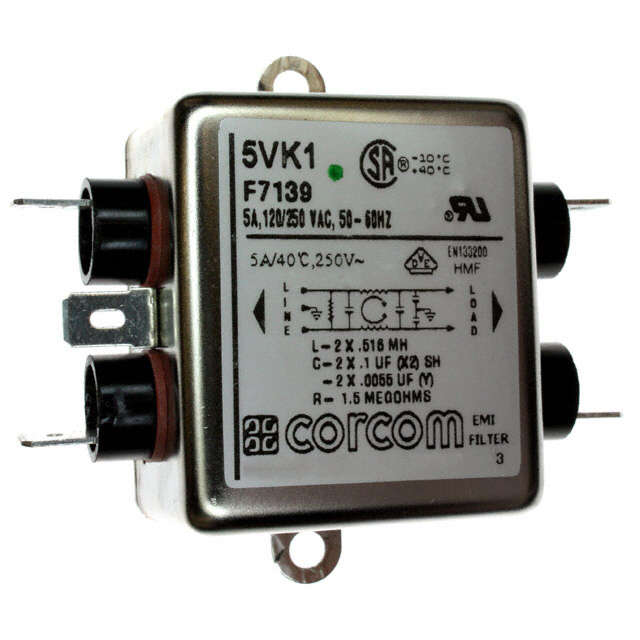

The TE Connectivity Corcom Filters 5VK1 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 5 A and operates at AC voltages up to 250V across 50/60Hz frequencies. The component features a single-stage configuration with quick connect termination style, ensuring efficient noise suppression in power line applications.

Feature Summary

• Provides single-stage EMI/RFI noise attenuation for single-phase power lines
• Features quick connect terminals for simplified circuit integration
• Designed for secure chassis mounting installation

Applications

• Single-phase power line filtering
• EMC/EMI noise suppression in electronic equipment
• General industrial power conditioning

Procurement Notes

Verify the specific datasheet version for the 5VK1 model to confirm exact dimensional tolerances and terminal specifications. Ensure compatibility with existing chassis mounting holes and verify that the quick connect terminal pitch matches the mating connector requirements before finalizing procurement decisions.

Selection Notes

Select this component when a single-stage filter solution is sufficient for the application's noise reduction needs. The 5A rating and 250VAC capability define its operational limits. Consider the chassis mount form factor and quick connect termination style as primary selection criteria alongside the electrical ratings.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters. The 5VK1 variant specifically addresses single-phase applications requiring moderate current handling and standard EMI suppression capabilities within a compact chassis-mountable package.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalents. Generic cross-references may not match the specific single-stage performance characteristics or terminal configurations required for proper system integration.
