5VR3

Overview

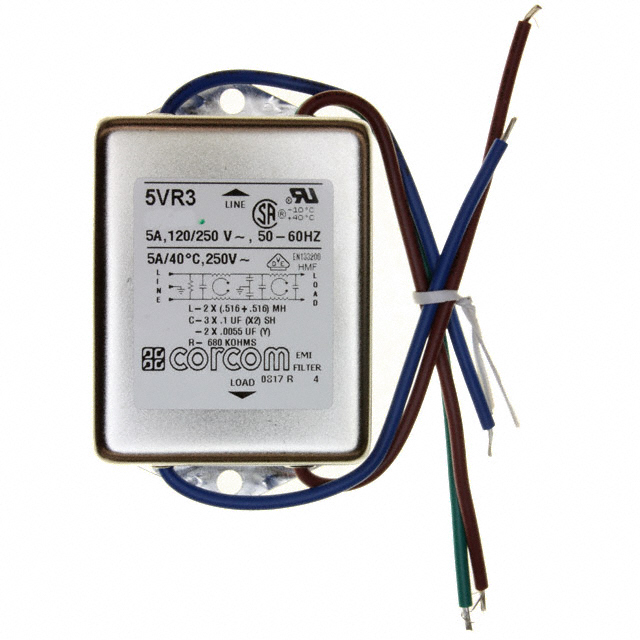

The TE Connectivity Corcom Filters 5VR3 is a single-phase EMC/EMI line filter module designed for commercial applications. It features a two-stage configuration with wire lead termination, rated for 5 A at 250 VAC and 50/60 Hz. The component supports chassis mounting and operates within a temperature range of -10°C to +40°C. Certified by CSA, UL, and VDE, it provides conducted noise suppression for electronic equipment.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Wire lead termination style
• Chassis mount installation
• Commercial grade certification

Applications

• Industrial automation equipment
• Medical devices
• Telecommunications infrastructure
• Consumer electronics

Procurement Notes

Verify the specific datasheet version for the 5VR3 part number to confirm exact dimensional tolerances and terminal specifications. Ensure the selected variant matches the required voltage and current ratings for the target application. Cross-reference certification marks such as UL or CSA if regional compliance is mandatory for the end product deployment.

Selection Notes

Select this component when a compact, two-stage solution is required for single-phase power lines up to 5 A. The wire lead design facilitates direct integration into internal wiring harnesses. Consider the operating temperature range and chassis mounting requirements during mechanical layout planning to ensure adequate clearance and thermal management.

Part Context

This component belongs to the TE Connectivity Corcom Filters portfolio, which specializes in electromagnetic compatibility solutions. The series includes various single-phase filters designed to mitigate conducted interference in power lines, supporting global regulatory compliance for electronic systems across industrial and commercial sectors.

Replacement Considerations

FN2080A-5-06
