5VR7

Overview

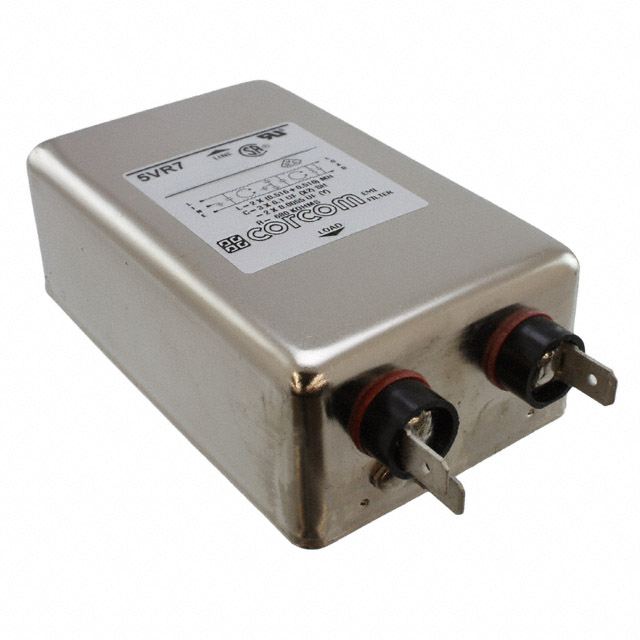

The TE Connectivity Corcom Filters 5VR7 is a single-phase EMC/EMI power line filter rated for 250 VAC and 5 A at 50/60 Hz. It utilizes a two-stage configuration to suppress electromagnetic interference in power distribution systems. The unit supports chassis mounting with flange installation and employs quick connect terminals for electrical termination. Certified by UL, CSA, and VDE, it operates within a temperature range of -10°C to 40°C.

Feature Summary

• Two-stage RFI suppression architecture
• Flange mount chassis installation
• Quick connect terminal interface

Applications

• General purpose RFI power line filtering
• Electromagnetic interference suppression in power distribution systems

Procurement Notes

Verify the specific datasheet version for the 5VR7 part number to confirm current RoHS compliance status and exact physical dimensions. Ensure that the receiving equipment supports the specified quick connect terminal style and flange mounting requirements before finalizing procurement decisions.

Selection Notes

Select this component when a two-stage filtering solution is required for 250 VAC circuits carrying up to 5 A. It is suitable for applications needing certified EMI suppression with standard flange mounting and quick-connect wiring interfaces.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, specifically designed as a general-purpose RFI power line filter. It addresses common electromagnetic interference issues in AC power lines operating at standard utility frequencies.
