6-102203-0

Headers, Male Pins Overview

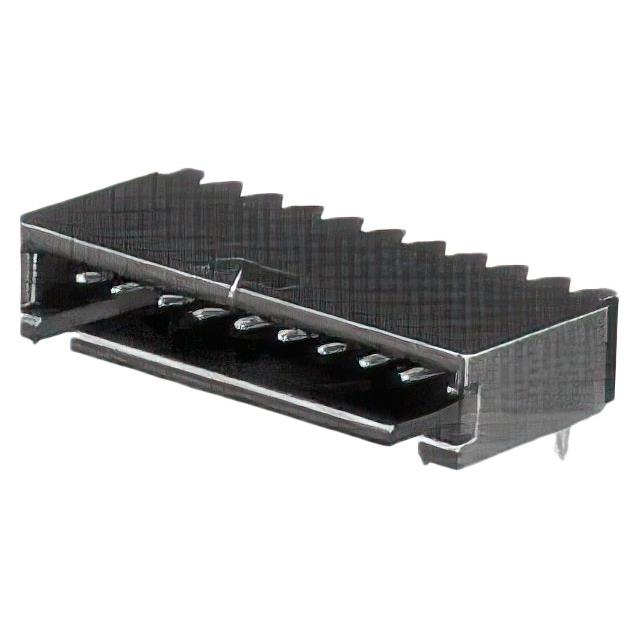

The TE Connectivity AMP Connectors part number 6-102203-0 is a connector header belonging to the AMPMODU Mod II series. It features a right-angle through-hole mounting style with 13 positions and a 0.100-inch (2.54mm) pitch. The contacts are male pins with gold plating, designed for solder termination. The housing is black thermoplastic rated UL94 V-0, supporting a current rating of 3A across an operating temperature range of -65°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board-to-board or cable connections.
• Gold-plated phosphor bronze contacts ensure reliable signal transmission.
• Shrouded four-wall housing provides alignment and pin protection.

Headers, Male Pins Applications

• Industrial control systems
• Consumer electronics assemblies
• Telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to confirm exact contact plating thickness and material specifications. Ensure compatibility with mating receptacles from the same AMPMODU Mod II family. Confirm that the right-angle orientation matches the intended PCB layout requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 13-position right-angle header is required within the AMPMODU Mod II ecosystem. Consider the 2.54mm pitch constraint and the 3A current rating limits. Evaluate thermal management needs relative to the -65°C to 105°C operational range and verify that the shrouded design meets spatial constraints on the target circuit board.

Headers, Male Pins Part Context

This header is part of the established AMPMODU Mod II product line, widely utilized in general-purpose interconnect applications. It serves as a standard solution for connecting ribbon cables or wire harnesses to printed circuit boards in a perpendicular configuration, offering robust mechanical stability alongside electrical connectivity.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 13-position headers from the AMPMODU Mod II series, such as 102203 variants with differing pin counts or orientations. Verify that any replacement maintains the identical 2.54mm pitch and shrouded geometry to ensure proper mating with existing receptacles.
