Product Detailed Parameters
- Description：3IN1 BAT ANTENNA - 2XLTE, GNSS,
- Series：AirLink® - Accessory
- Mfr：Sierra Wireless AirLink
- Package：Box
- RF Family/Standard：Cellular, Navigation
- Frequency Group：UHF (3GHz ~ 4GHz)
- Frequency (Center/Band)：3.349GHz
- Frequency Range：698MHz ~ 6GHz
- Antenna Type：Module
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：-
- Features：Cable - 3m
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：-
- Applications：GNSS, LTE
- Power - Max：-
Download product information
Overview

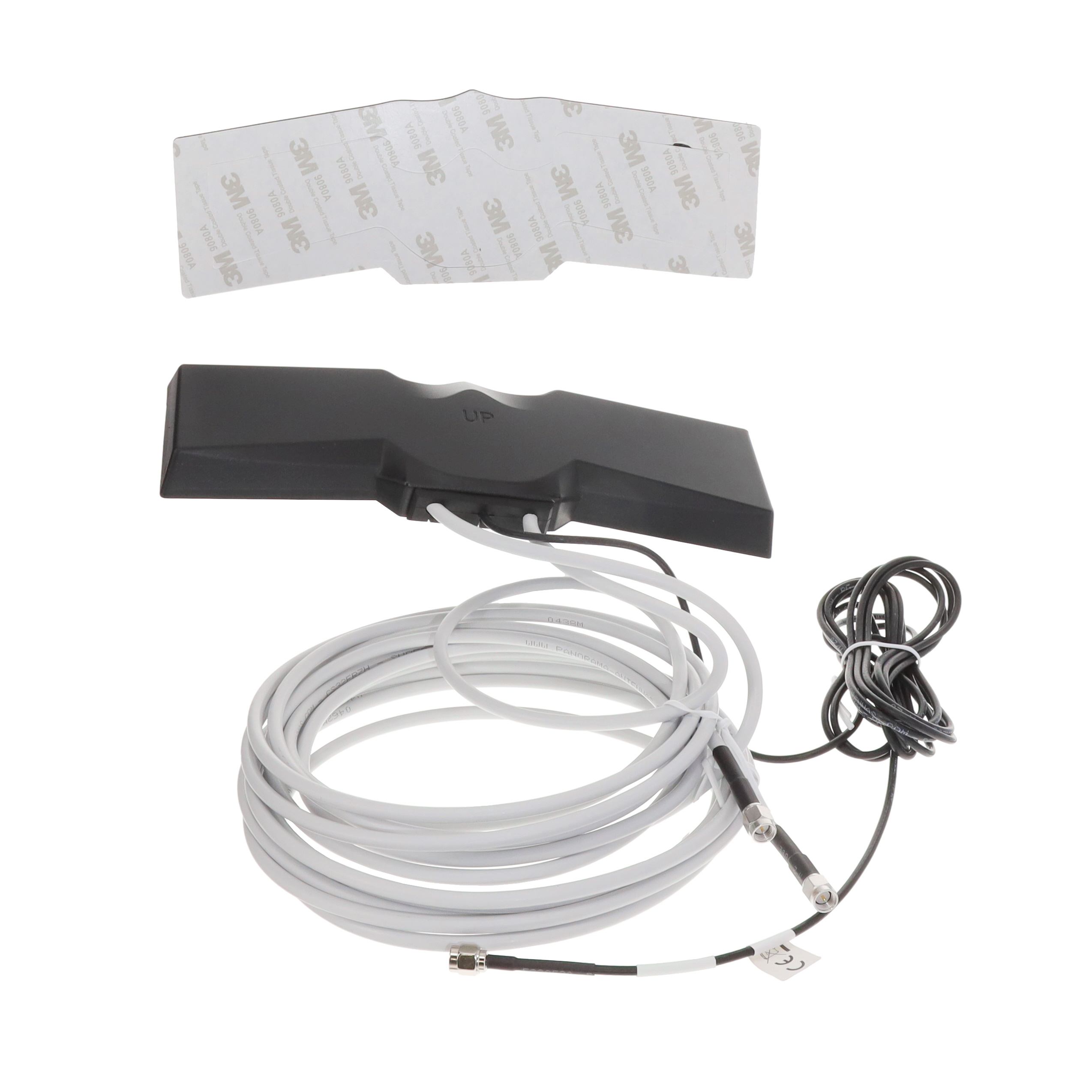

The Sierra Wireless AirLink 6001200 is a 3-in-1 module RF antenna designed for dual LTE and GNSS applications. It supports frequency ranges from 698MHz to 6GHz, covering cellular bands and navigation signals. The unit features an adhesive installation type and includes a 3-meter cable with SMA termination. Maximum input power is rated at 25W. This component integrates LTE and GNSS capabilities into a single compact form factor suitable for embedded connectivity solutions.
Feature Summary
- Integrates dual LTE and GNSS reception in a single 3-in-1 module design
- Utilizes adhesive mounting for secure attachment to device surfaces
- Includes a 3-meter cable length with SMA connector interface
Applications
- Dual LTE and GNSS connectivity modules
- Embedded wireless communication devices
- Navigation-enabled cellular hardware
Procurement Notes
Verify the specific datasheet version before procurement to ensure compatibility with current manufacturing standards. Confirm that the adhesive backing meets the environmental requirements of the target application. Ensure the SMA connector orientation aligns with the host module's port configuration. Check for any recent product change notices regarding material composition or performance specifications.
Selection Notes
Select this model when a combined solution for LTE and GNSS is required within a single physical footprint. The wide frequency range supports various global cellular bands. Consider the 3-meter cable length for routing flexibility. Verify that the 25W power rating exceeds the maximum output of the connected transceiver to prevent damage.
Part Context
This part belongs to the Sierra Wireless AirLink accessory series, specifically designed as an antenna solution for their embedded modules. It complements the company's portfolio of wireless connectivity components by providing integrated signal reception for both cellular and satellite navigation systems in a standardized package.
Replacement Considerations
The 6001124 and 6001125 are related models within the same AirLink antenna family. However, these variants lack GNSS support, offering only cellular functionality. If GNSS capability is required, these parts are not direct substitutes. Evaluate the specific frequency band coverage needs before considering alternative models.
