Product Detailed Parameters
- Description：4IN1 BAT ANTENNA - 2XLTE, GNSS,
- Series：AirLink® - Accessory
- Mfr：Sierra Wireless AirLink
- Package：Box
- RF Family/Standard：Cellular, Navigation, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.4GHz, 3.349GHz, 5GHz
- Frequency Range：698MHz ~ 6GHz
- Antenna Type：Module
- Number of Bands：3
- VSWR：-
- Return Loss：-
- Gain：-
- Features：Cable - 3m
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：-
- Applications：GNSS, LTE, Wi-Fi
- Power - Max：-
Download product information
Overview

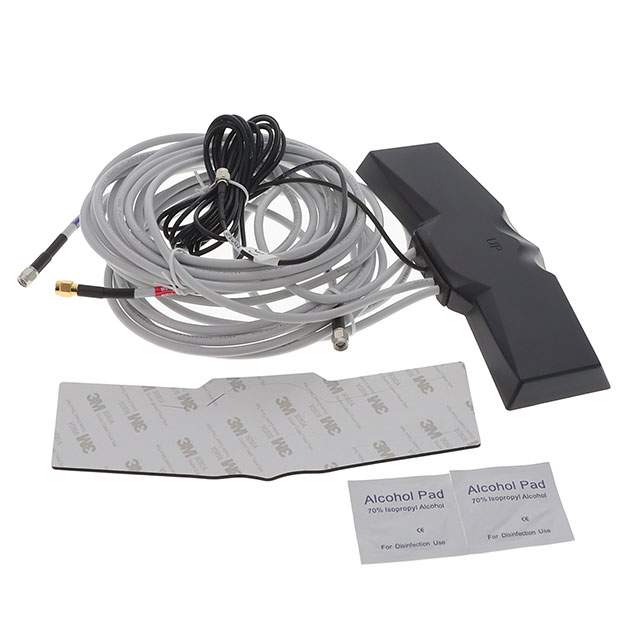

The Sierra Wireless AirLink 6001201 is a 4-in-1 BAT wireless antenna module designed for cellular, GNSS, and Wi-Fi applications. It operates within a frequency range of 698MHz to 6GHz, supporting specific bands at 2.4GHz, 3.349GHz, and 5GHz. The component features an adhesive mounting type and includes a 3-meter cable. It supports LTE, GLONASS, and Wi-Fi protocols, ensuring optimized connectivity for broadband networks.
Feature Summary
- Integrates support for dual-band LTE, GNSS positioning, and Wi-Fi data in a single module
- Utilizes adhesive installation for secure attachment without mechanical fasteners
- Provides extended reach via a fixed 3-meter connecting cable
Applications
- LTE cellular network connectivity enhancement
- GNSS positioning system integration including GLONASS
- Dual-band Wi-Fi data network deployment
Procurement Notes
Verify the specific adhesive mount configuration and 3-meter cable length against system requirements before procurement. Confirm compatibility with target LTE bands and GNSS constellations supported by the host device. Ensure the operating frequency range of 698MHz to 6GHz aligns with local regulatory standards and network infrastructure specifications.
Selection Notes
Select this model when a compact, multi-functional antenna solution is required for simultaneous LTE, GNSS, and Wi-Fi operations. The adhesive mounting style suits applications where space is limited or mechanical penetration is undesirable. Consider the 3-meter cable length for routing flexibility between the antenna placement and the main unit interface.
Part Context
This component belongs to the Sierra Wireless AirLink Accessory series, specifically categorized under RF antennas. It serves as an external connectivity solution for industrial and commercial devices requiring robust wireless performance across multiple radio technologies.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify functional equivalence if sourcing alternatives from other manufacturers.
