Product Detailed Parameters
- Description：LINE FLTR 690VAC 600A CHASS MNT
- Series：APH
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：690V
- Current：600 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-10°C ~ 50°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

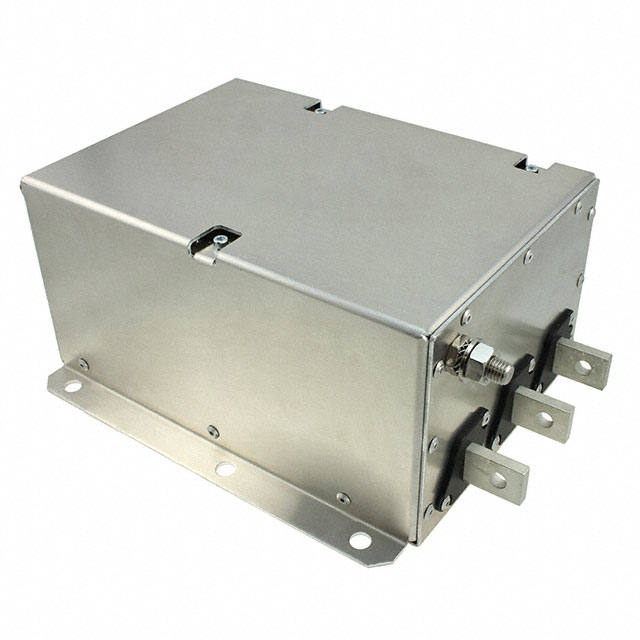

The TE Connectivity Corcom Filters model 600APH12P is a three-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated voltage of 690 VAC and a current capacity of 600 A at 50/60 Hz frequencies. The unit features a three-stage filtering configuration to ensure effective noise suppression in industrial environments.
Feature Summary
- Provides robust electromagnetic interference suppression through a three-stage filtering architecture
- Engineered for high-current applications with a 600 A rating and 690 VAC capability
- Designed for secure chassis mounting to integrate into heavy-duty power distribution systems
Applications
- Industrial power distribution networks requiring high current handling
- Three-phase machinery protection against conducted electromagnetic noise
- Heavy-duty equipment installations needing reliable EMI/RFI mitigation
Procurement Notes
Verify the specific electrical requirements match the 690 VAC and 600 A ratings before procurement. Confirm that the chassis mounting style aligns with your enclosure design. Ensure the three-phase delta configuration is compatible with your system topology. Check for any recent product change notices or end-of-life announcements from the manufacturer.
Selection Notes
Select this component when three-phase noise suppression is required for high-power loads. The 600 A rating suits large industrial drives and generators. Consider the chassis mount form factor for fixed installations. Validate that the three-stage attenuation meets your specific emission standards.
Part Context
This part belongs to the TE Connectivity Corcom Filters series, known for industrial-grade power line filters. The 600APH12P specifically addresses high-capacity three-phase applications. It complements other Corcom products by offering specialized solutions for heavy industrial power integrity.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and terminal connections if considering alternative models.
