6035S20800BMDALEGNE-CT

Crystals Overview

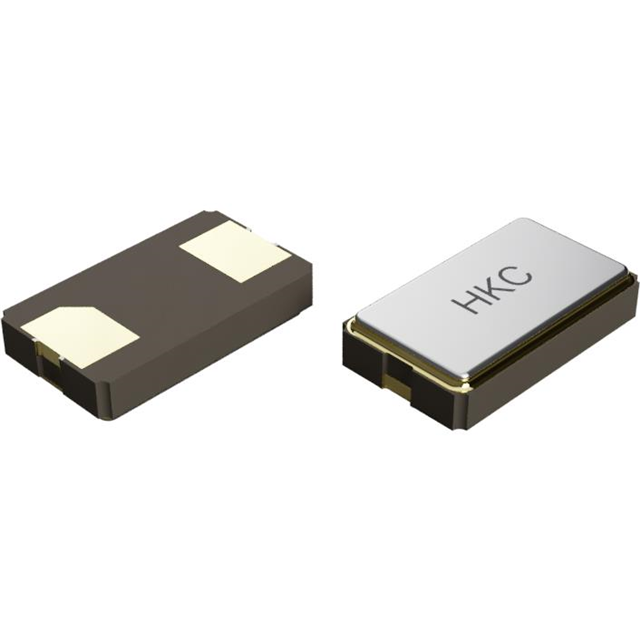

The HKC 6035S20800BMDALEGNE-CT is a surface-mount crystal oscillator operating at a fundamental frequency of 8 MHz. It features a load capacitance of 15 pF and an equivalent series resistance (ESR) of 150 Ohms. The component is housed in a 2-SMD, no-lead package and supports an industrial temperature range from -40°C to +85°C.

Crystals Feature Summary

• Provides stable 8 MHz timing signals for electronic circuits
• Designed for surface-mount technology integration
• Operates reliably within extended industrial temperature ranges

Crystals Applications

• General-purpose clock generation in consumer electronics
• Timing reference for microcontroller systems
• Industrial control equipment requiring stable oscillation

Crystals Procurement Notes

Verify the manufacturer part number against official HKC documentation to ensure authenticity. Confirm that the specific suffix matches the required load capacitance and tolerance specifications for your design. Request the current datasheet to validate the package dimensions and soldering profile requirements before finalizing procurement orders.

Crystals Selection Notes

Select this component when an 8 MHz fundamental frequency with 15 pF load capacitance is required. Ensure the circuit design accommodates the specified 150 Ohm ESR. Verify that the operating environment falls within the -40°C to +85°C range. Consider the 2-SMD no-lead package constraints for PCB layout and assembly processes.

Crystals Part Context

This crystal belongs to the HKC family of surface-mount resonators. It serves as a passive frequency-determining element in oscillator circuits. The device provides a precise reference signal for digital logic and communication interfaces. Its construction supports automated pick-and-place manufacturing processes.

Crystals Replacement Considerations

Cross-reference with other 8 MHz crystals featuring 15 pF load capacitance and compatible ESR values. Ensure any substitute maintains the same 2-SMD footprint and industrial temperature rating. Verify pin compatibility and electrical characteristics match the original design requirements.
