60AYP6C

Overview

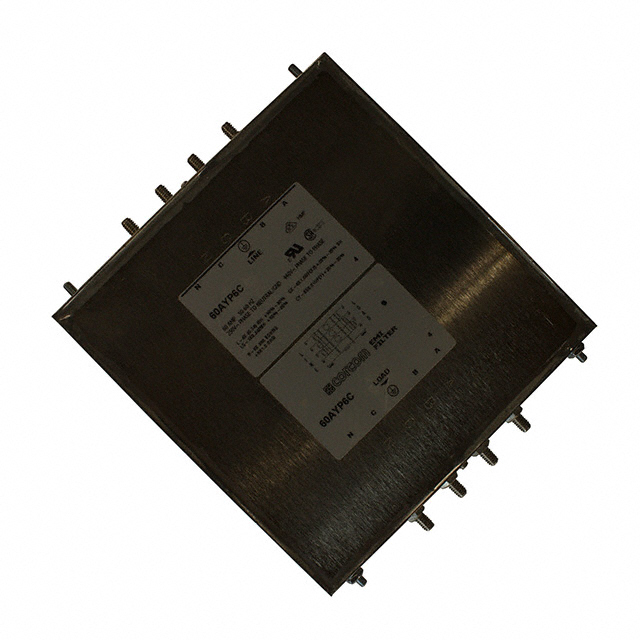

The TE Connectivity Corcom Filters 60AYP6C is a three-phase (Wye) EMC/EMI line filter rated for 60 A at 50/60 Hz. It features a two-stage filtering configuration with threaded post terminals (1/4-20). Designed for 3-phase, 4-wire WYE applications, it provides filtering on all three lines plus neutral and ground. The unit exhibits a leakage current of 1.4 mA @ 120 VAC.

Feature Summary

• Provides comprehensive EMI/RFI suppression across all phases, neutral, and ground in WYE configurations
• Utilizes a two-stage filtering architecture for enhanced noise attenuation
• Features robust threaded post terminal connections for secure mounting

Applications

• Three-phase, four-wire WYE power distribution systems
• Industrial machinery requiring strict electromagnetic compatibility
• Medical equipment installations with sensitive electronic components

Procurement Notes

Verify the specific voltage rating requirements against the 120 VAC leakage current specification. Confirm that the 1/4-20 threaded post interface matches the chassis mounting hardware. Ensure the 60 A continuous current rating aligns with the maximum load of the target application circuit to prevent thermal overload.

Selection Notes

Select this component when a three-phase WYE topology requires integrated filtering for all conductors including neutral and ground. The two-stage design offers higher attenuation than single-stage alternatives. Verify that the physical dimensions and threaded post spacing fit the available panel or chassis space before finalizing the design.

Part Context

This part belongs to the TE Connectivity Corcom A Series, which specializes in three-phase RFI filters. The series is engineered for high-current industrial environments where stringent emission standards must be met without compromising power delivery efficiency or introducing excessive voltage drop.

Replacement Considerations

FN2080A-60-06 by TE Connectivity Schaffner is listed as a similar substitute option.
