60AYT6C

Overview

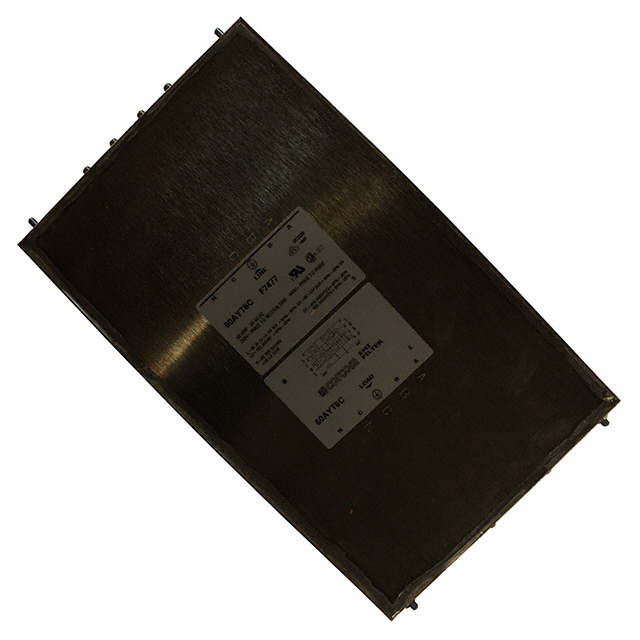

The TE Connectivity Corcom Filters 60AYT6C is a three-phase RFI filter designed for panel mounting. It supports a maximum current of 60 A and operates at 440 V AC with a frequency of 50 Hz. The unit features threaded bolt terminals for secure connection. Operating temperatures range from -10°C to 40°C, with physical dimensions including a height of 78.23 mm.

Feature Summary

• Three-phase EMI/RFI filtering capability
• Panel mount installation with flange
• Threaded bolt terminal connections

Applications

• Industrial power distribution systems
• Three-phase machinery protection
• Electromagnetic interference suppression in commercial equipment

Procurement Notes

Verify the specific voltage rating (440V AC) and phase configuration (three-phase) against your system requirements before ordering. Confirm that the threaded bolt terminal style matches your wiring infrastructure. Ensure the operating temperature range meets your environmental conditions. Check for RoHS compliance status if required by your project specifications.

Selection Notes

Select this component when three-phase filtering is required for high-current applications up to 60 A. The 440 V AC rating suits specific industrial voltage standards. Consider the panel mount form factor and threaded bolt termination method during mechanical integration planning. Verify compatibility with existing enclosure cutouts and mounting hardware constraints.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression solutions. The Corcom brand provides various filter types including line filters and feedthrough capacitors for diverse industrial and commercial applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
