Product Detailed Parameters
- Description：LINE FILTER 440VAC 60A CHASS MNT
- Series：KEH
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：60 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

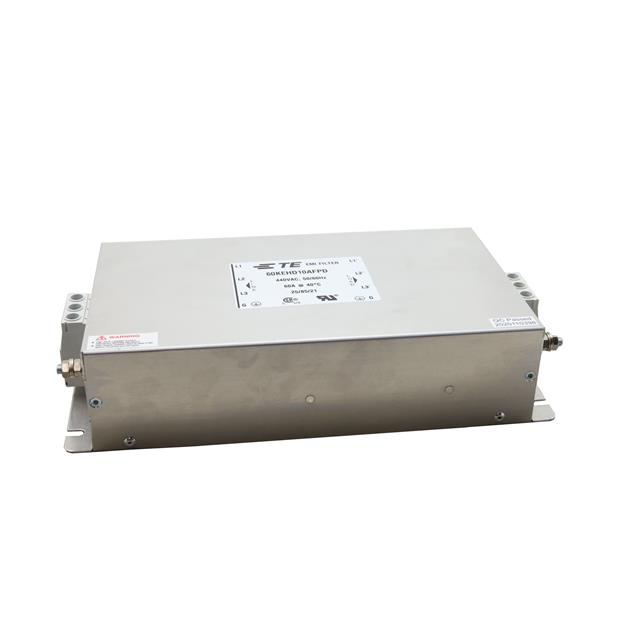

The 60KEHD10AFPD is a three-phase EMC/RFI power line filter manufactured by TE Connectivity Corcom. It supports a rated voltage of 440 VAC and a current rating of 60 A at operating frequencies of 50 Hz and 60 Hz. The unit features chassis mounting with screw termination and exhibits a leakage current of 6 mA. Physical dimensions are 270 mm in length, 140 mm in width, and 60 mm in height. It operates within a temperature range of -25 C to +85 C and holds UL and CSA compliance certifications.
Feature Summary
- Provides two-stage attenuation for electromagnetic interference suppression in three-phase delta configurations
- Designed for secure chassis mounting using screw terminal connections
- Complies with UL and CSA safety standards for industrial applications
Applications
- Industrial machinery power conditioning
- Three-phase motor drive input filtering
- Commercial power distribution systems
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to end-of-life status. Confirm physical compatibility with existing chassis cutouts and terminal spacing. Validate that the 60 A current rating and 440 VAC voltage specifications align with system requirements. Check for RoHS and REACH compliance documentation if required by specific regional regulations.
Selection Notes
Select this model when a three-phase delta configuration is required for 60 A circuits. Ensure the chassis mounting style and screw terminals match the enclosure design. Verify that the 6 mA leakage current meets safety limits for sensitive loads. Consider the physical footprint constraints given the 270 mm length and 140 mm width dimensions.
Part Context
This component belongs to the KEH series of power line filters from TE Connectivity Corcom. The series offers various current ratings for three-phase applications. The 60KEHD10AFPD specifically addresses high-current needs with a 60 A capacity. It utilizes a robust metal housing for thermal management and EMI shielding effectiveness.
Replacement Considerations
The manufacturer lists this part as discontinued. No direct public substitute part numbers are confirmed for this specific model. Evaluate alternative KEH series variants or other three-phase filters with matching 60 A and 440 VAC ratings.
