60KEHD10BFPD

Overview

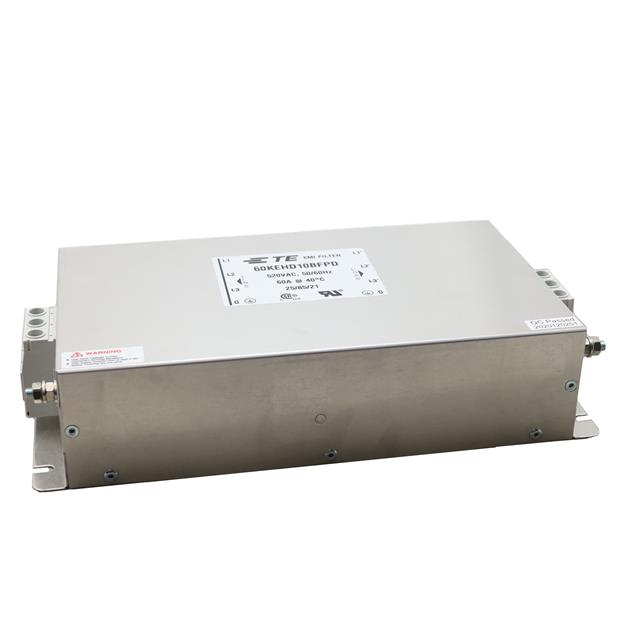

The TE Connectivity Corcom Filters 60KEHD10BFPD is a three-phase EMC/RFI power line filter designed for chassis mounting. It features a two-stage configuration with terminal block connections and supports a rated current of 60 A at voltages up to 520 VAC (Delta) or 440 VAC. Operating within a temperature range of -25°C to +85°C, this unit measures 270 mm in length, 140 mm in width, and 60 mm in height.

Feature Summary

• Provides two-stage attenuation for effective EMI and RFI suppression in three-phase systems
• Supports flexible voltage configurations including Delta and Wye topologies
• Utilizes robust screw terminal connections for secure electrical interfacing

Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Commercial power distribution units

Procurement Notes

Verify the specific voltage rating required for your application, as datasheets indicate both 440 VAC and 520 VAC variants exist under similar part numbering conventions. Confirm that the chassis mounting dimensions align with your enclosure design before procurement. Ensure compatibility with the 60 A current load and verify terminal block specifications match your wiring infrastructure.

Selection Notes

Select this component when high-current three-phase filtering is necessary for sensitive industrial equipment. The chassis mount style requires adequate panel space and thermal management. Consider the operating temperature range and ensure the installation environment remains within the specified limits to maintain filter performance and longevity.

Part Context

This model belongs to the KEH series of power line filters from TE Connectivity Corcom Filters. The series is engineered for demanding environments requiring reliable noise suppression. The part number indicates specific electrical ratings and connection types distinct from other series like KES or VS.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
