60KEMS10AFPD

Overview

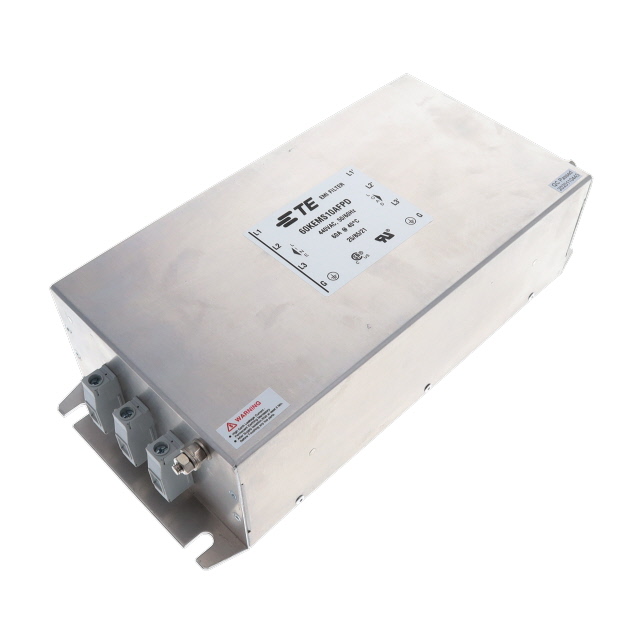

The TE Connectivity Corcom Filters 60KEMS10AFPD is a three-phase power line filter designed for industrial applications. It features a single-stage configuration with a voltage rating of 440 VAC and a current capacity of 60 A. The unit operates at frequencies of 50 Hz and 60 Hz, with a maximum leakage current of 18 mA. Physical dimensions are 270 mm in length, 140 mm in width, and 60 mm in height. It utilizes terminal block termination and chassis mounting. Compliance includes UL and CSA certifications.

Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Utilizes terminal block connections for secure electrical interfacing
• Designed for chassis mounting to facilitate integration into control panels

Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Factory automation equipment filtering

Procurement Notes

Verify the specific suffix requirements against the official datasheet before ordering, as variations may exist within the product family. Confirm that the terminal block termination style matches the existing panel infrastructure. Ensure the 440 VAC rating aligns with the system voltage. Check for any updated compliance documentation required by local regulations. Validate physical dimensions against available mounting space constraints.

Selection Notes

Select this model when a 60 A continuous current rating is required for three-phase circuits. The terminal block interface suits applications where screw-down wiring is preferred over quick-connect types. The chassis mount design allows for direct installation on metal enclosures. Consider the 18 mA leakage current limit for sensitive downstream electronics. Verify that the operating temperature range of -25°C to +85°C meets environmental conditions.

Part Context

This component belongs to the KEH/KEM series of power line filters from TE Connectivity Corcom. These filters are engineered for EMC/RFI suppression in industrial environments. The series offers various current ratings and termination styles to accommodate different panel layouts. The 60KEMS10AFPD specifically addresses high-current three-phase needs with robust mechanical construction.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's obsolescence notice or cross-reference guide for potential alternatives if this specific model is discontinued or unavailable.
