Product Detailed Parameters
- Description：LINE FILTER 520VAC 60A CHASS MNT
- Series：KEM
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：60 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

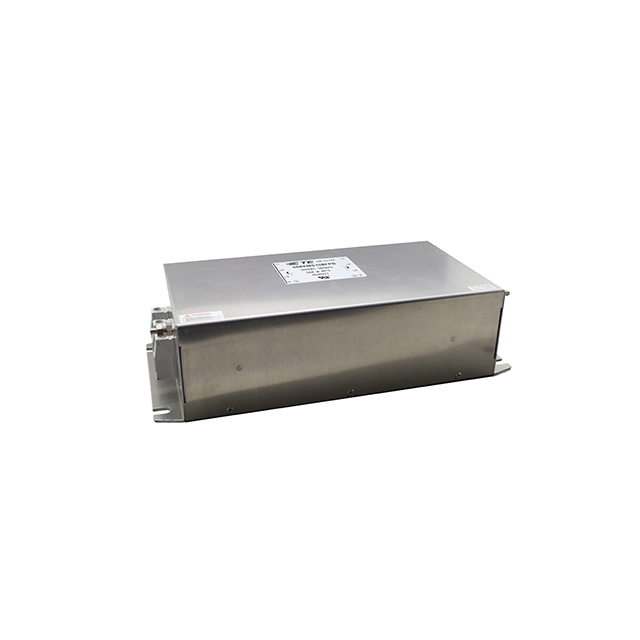

The 60KEMS10BFPD is a three-phase single-stage power line filter from the TE Connectivity Corcom KEM series. It provides electromagnetic interference mitigation for industrial applications with a rated current of 60A and a voltage rating of 520VAC. The unit operates at 50Hz or 60Hz frequencies and utilizes terminal block connections for installation. Designed for chassis mounting, this component ensures robust performance in high-voltage environments requiring reliable noise suppression.
Feature Summary
- Provides single-stage electromagnetic interference filtering for three-phase systems
- Engineered for high-voltage industrial power line applications
- Features durable chassis mount construction for secure integration
Applications
- Industrial automation machinery
- High-power manufacturing equipment
- Three-phase motor drive systems
Procurement Notes
Verify the specific part number against official manufacturer documentation to confirm compatibility with your system requirements. Ensure that the 60A current rating and 520VAC voltage specifications align with your operational parameters before procurement. Cross-reference datasheets for precise mechanical dimensions and terminal block configurations to guarantee proper fitment.
Selection Notes
Select this model when three-phase EMI filtering is required for heavy-duty industrial loads. Confirm that the chassis mounting style suits your enclosure design. Evaluate the 60A continuous current capacity against peak load demands. Verify that the terminal block interface matches existing wiring harnesses and connection methods within the assembly.
Part Context
This component belongs to the Corcom KEM series, which specializes in high-performance power line filters. The series is designed to meet stringent industrial standards for electromagnetic compatibility. These filters are engineered to handle significant electrical loads while maintaining signal integrity in demanding operational environments.
Replacement Considerations
Consult official substitution guides for equivalent models within the KEM series. Verify that any alternative part maintains identical three-phase configuration and voltage ratings. Ensure mechanical mounting interfaces and terminal types remain compatible with existing infrastructure.
