Product Detailed Parameters
- Description：LINE FILTER 440VAC 60A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：60 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

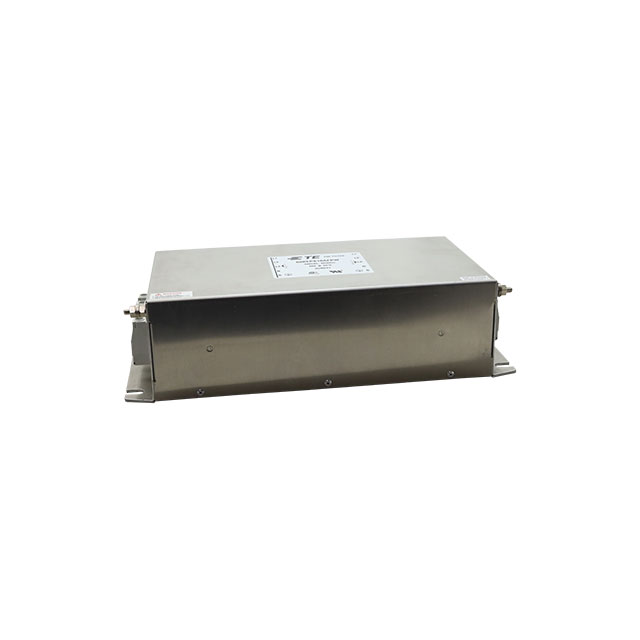

The 60KEPS10AFPW is a three-phase superior performance EMI filter manufactured by TE Connectivity Corcom. It features a chassis mount design with terminal block termination for secure electrical connections. The unit is rated for 440 VAC and supports a continuous current of 60 A at operating frequencies of 50 Hz and 60 Hz. Physical dimensions are 202 mm in length, 135 mm in width, and 80 mm in height. It operates within a temperature range of -25°C to +85°C and maintains a leakage current of 8.5 mA.
Feature Summary
- Provides electromagnetic interference mitigation for three-phase power lines
- Designed for high-performance noise suppression applications
- Supports robust industrial power conditioning environments
Applications
- Industrial automation systems
- Climate control equipment
- Power supply input stages
Procurement Notes
Verify component authenticity through authorized channels due to discontinuation status. Confirm technical specifications against official datasheets before integration. Ensure compatibility with existing chassis mounting hardware and terminal block wiring requirements. Validate regulatory compliance certifications relevant to the target deployment region.
Selection Notes
Select this model for three-phase circuits requiring 60 A capacity at 440 VAC. Consider the specific terminal block interface for wiring compatibility. Evaluate thermal management needs given the operational temperature limits. Verify that the physical footprint fits the designated enclosure space.
Part Context
This component belongs to the KEP series of power line filters from TE Connectivity Corcom. The series offers various current ratings for three-phase applications. The 60KEPS10AFPW represents a specific configuration optimized for higher current loads while maintaining standard voltage ratings.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for potential cross-references or updated series replacements.
