60KEPS10BFPW

Overview

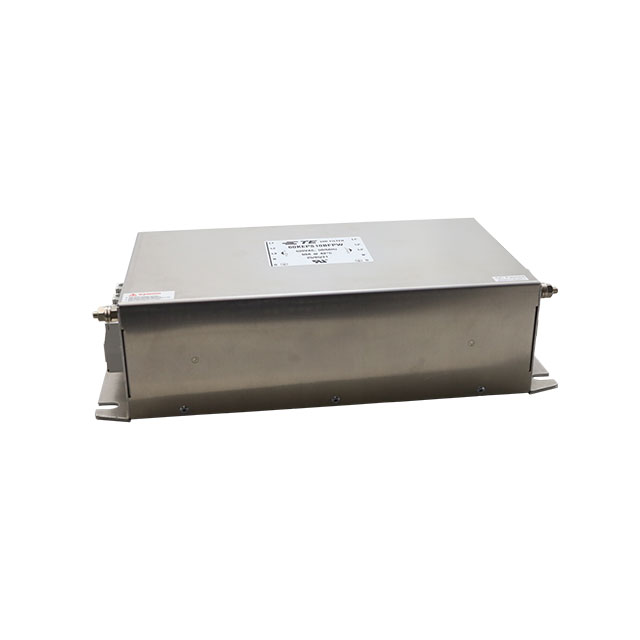

The 60KEPS10BFPW is a three-phase superior performance EMI power line filter manufactured by TE Connectivity Corcom. It features a chassis mount design with screw and quick connect termination options. The unit supports a rated voltage of 520 VAC and a current rating of 60 A at 50 Hz or 60 Hz operating frequencies. Physical dimensions are 202 mm in length, 135 mm in width, and 80 mm in height. It maintains a leakage current of 8.5 mA and operates within a temperature range of -25 C to +85 C. Certifications include UL and CSA standards.

Feature Summary

• Provides superior performance electromagnetic interference filtering for three-phase power systems
• Utilizes a robust chassis mount configuration for secure industrial installation
• Supports dual termination methods including screw connections and quick connect terminals

Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Commercial building electrical distribution systems

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels due to potential supply chain variations. Confirm specific termination requirements against existing panel layouts before procurement. Ensure environmental conditions align with the specified operational temperature limits. Validate that the 520 VAC rating matches the target system voltage precisely. Check for updated compliance documentation if required by local regulations.

Selection Notes

Select this model when superior attenuation characteristics are required for three-phase applications. Compare physical dimensions against available enclosure space to ensure proper fit. Evaluate the 60 A current capacity against peak load requirements to prevent thermal overload. Consider the chassis mount style for fixed installations rather than portable setups. Verify compatibility with existing wiring harnesses regarding terminal types.

Part Context

This component belongs to the KEP series of power line filters designed for high-current three-phase environments. The series emphasizes superior EMI suppression capabilities compared to general-purpose alternatives. It integrates into larger power management assemblies within industrial control panels. The manufacturer provides technical drawings and compliance certificates for integration planning.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
