Product Detailed Parameters
- Description：LINE FILTER 440VAC 60A CHASS MNT
- Series：KEV
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：60 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

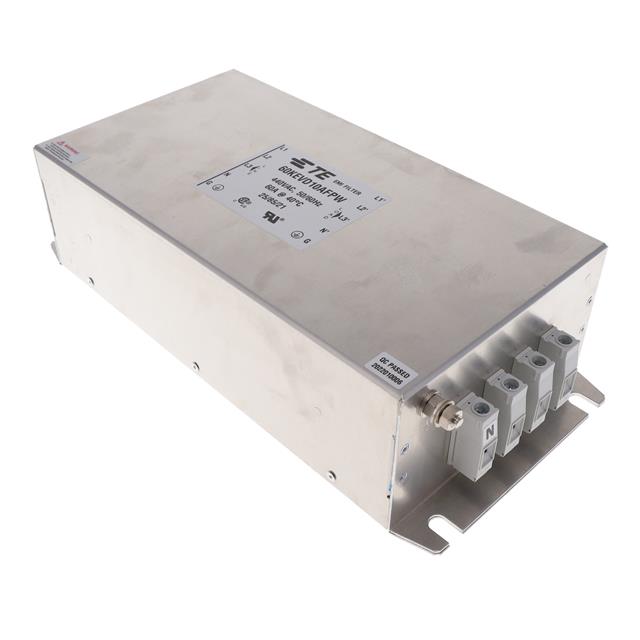

The 60KEVD10AFPW is a three-phase very high-performance EMI filter manufactured by TE Connectivity Corcom. It features a Wye configuration with a 440 VAC voltage rating and a 60 A current capacity. Designed for chassis mounting, the unit utilizes quick connect and screw terminal types. The filter operates at 50 Hz or 60 Hz with a maximum leakage current of 15 mA. Physical dimensions are 350 mm in length, 92 mm in width, and 160 mm in height. It supports an operating temperature range from -25 C to +85 C and holds UL and CSA compliance certifications.
Feature Summary
- Provides very high-performance electromagnetic interference suppression for three-phase power lines
- Supports dual termination methods including quick connect and screw terminals for flexible integration
- Engineered for direct chassis mounting to ensure stable mechanical installation
Applications
- Industrial machinery requiring strict electromagnetic compatibility
- Power conditioning systems for sensitive electronic loads
- Three-phase equipment installations adhering to UL and CSA safety standards
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to discontinued status. Confirm physical dimensions and terminal compatibility with existing chassis layouts. Ensure replacement units meet original electrical ratings for voltage and current. Check for updated regulatory compliance documentation before integration into certified systems.
Selection Notes
Select this model when very high performance attenuation is required for three-phase applications. Ensure the system voltage does not exceed 440 VAC and current remains within 60 A limits. Verify that chassis mounting space accommodates the specified physical footprint. Confirm that the Wye configuration matches the source power distribution topology.
Part Context
This component belongs to the KEV series of power line filters designed for demanding industrial environments. The series emphasizes robust construction and high attenuation capabilities. It serves as a critical interface between power sources and sensitive downstream equipment to maintain signal integrity.
FAQ
What is the maximum leakage current for this filter?
The maximum leakage current is 15 mA.
Does this filter support both screw and quick connect terminals?
Yes, the 60KEVD10AFPW supports both screw and quick connect terminal types.
