Product Detailed Parameters
- Description：LINE FILTER 520VAC 60A CHASS MNT
- Series：KEV
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：60 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

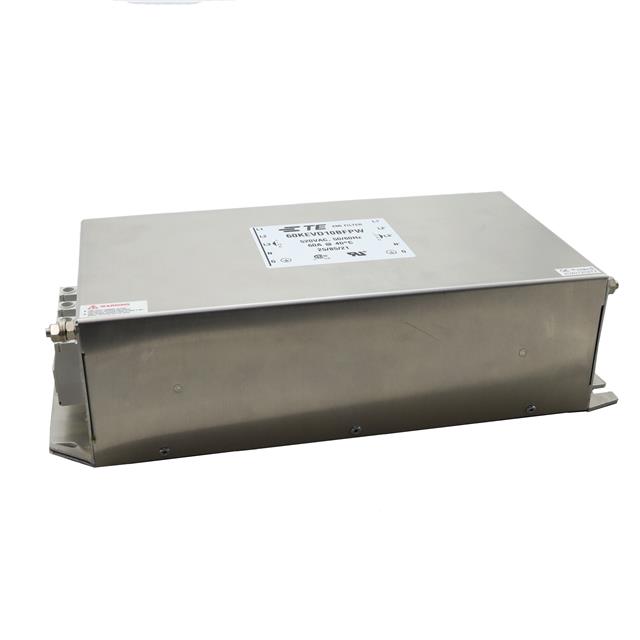

The 60KEVD10BFPW is a three-phase very high-performance EMI filter manufactured by TE Connectivity Corcom. It supports a current rating of 60 A and a voltage rating of 520 VAC at 50/60 Hz. The unit features a two-stage filtering architecture with chassis mount installation and screw terminal connections. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It operates within a temperature range of -25 C to +85 C and has a leakage current of 15 mA.
Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- Very high-performance EMI attenuation capabilities
- Chassis mount design with screw terminals
Applications
- Industrial power distribution systems
- Three-phase machinery requiring EMI protection
- Power conditioning equipment
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential supply chain variations. Confirm specific lot codes and manufacturing dates if traceability is required for critical installations. Ensure compatibility with existing chassis mounting hardware and terminal block specifications before procurement.
Selection Notes
Select this model when high-level EMI suppression is required for three-phase loads up to 60 A. Verify that the 520 VAC rating matches the system voltage. Consider the physical footprint of 350x160x92 mm for enclosure integration. Ensure screw terminal connectivity aligns with wiring infrastructure.
Part Context
This component belongs to the KEV series of power line filters from TE Connectivity Corcom. The KEV series is designed for industrial applications requiring robust EMI/RFI filtering. It complements other Corcom products like the KES series for general-purpose filtering needs.
FAQ
What is the leakage current specification?
The leakage current is specified as 15 mA.
Is this filter switched or unswitched?
The datasheet does not explicitly state a switching function; it is primarily an EMI filter module.
