60VK6

Overview

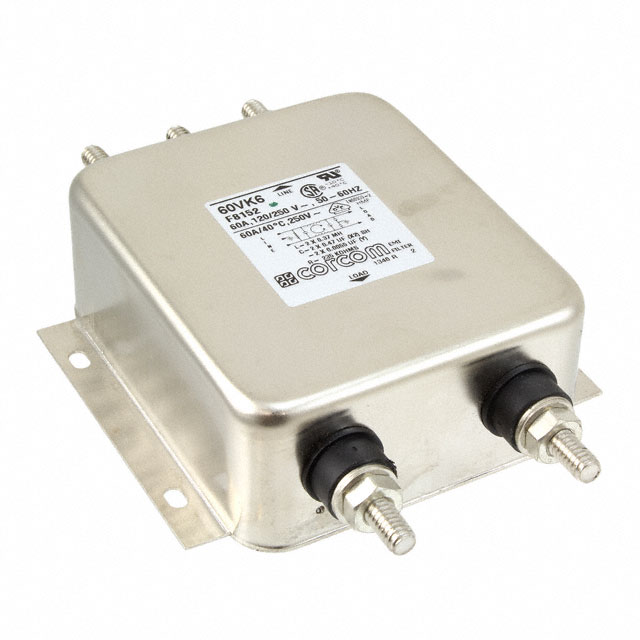

The TE Connectivity Corcom Filters 60VK6 is a single-phase EMC/RFI power line filter designed for chassis mounting. It supports a rated voltage of 250 VAC and handles up to 60 A current at operating frequencies of 50 Hz and 60 Hz. The unit utilizes stud termination and features a flange mount style. Key electrical specifications include a leakage current of 700 uA. It belongs to the K series, which covers ratings from 20-40 Amps, although this specific model is rated for 60 A. The component is UL compliant.

Feature Summary

• Provides electromagnetic interference (EMI) and radio frequency interference (RFI) suppression for single-phase AC power lines
• Features a threaded stud terminal design for secure electrical connections
• Utilizes a flange mount configuration for stable chassis installation

Applications

• Industrial machinery power conditioning
• Medical equipment power supply filtering
• Commercial electronic systems requiring EMI protection

Procurement Notes

Verify the exact part number against official TE Connectivity documentation to ensure compatibility with system requirements. Confirm that the 60 A current rating and 250 VAC voltage specification align with the application's electrical parameters. Check for any specific RoHS compliance details or alternative package options if standard bulk packaging does not suit the manufacturing process. Ensure the stud termination type matches the existing circuit board or busbar layout.

Selection Notes

Select this component when a high-current single-phase filter is required for chassis-mounted applications. The 60 A rating distinguishes it from lower-capacity models in the K series. Consider the stud termination and flange mount style for mechanical integration. Verify that the 700 uA leakage current meets safety standards for the intended end-use environment. Compare against other Corcom series filters if different mounting styles or voltage ratings are needed.

Part Context

The 60VK6 is part of the TE Connectivity Corcom Filters lineup, specifically within the power line filter category. It is manufactured by TE Connectivity / P&B. The component is classified as a 1-Phase EMC/RFI Filter. It falls under the sub-category of Power Condition products. The manufacturer identifies this item with the brand TE Connectivity / P&B.

Replacement Considerations

Publicly confirmed substitute part numbers for the 60VK6 were not found in the provided source material.
