Headers, Male Pins Overview

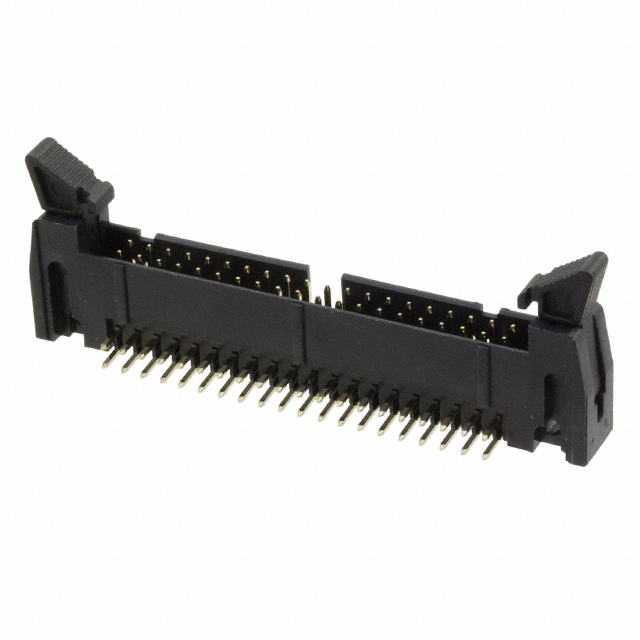

The Würth Elektronik part number 61204022121 is a WR-BHD series right-angle through-hole PCB header. It features 40 contacts arranged in a dual row with a 2.54 mm pitch. The connector is shrouded and includes an integrated lever for secure mating. Rated at 250 V and 3 A, it utilizes gold-plated male pins. The component measures approximately 19.8 mm in height and is designed for reliable signal and power transmission in electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting configuration
• Integrated locking lever mechanism
• Shrouded housing design
• Gold-plated contact surfaces

Headers, Male Pins Applications

• Industrial control systems
• Consumer electronics interconnects
• General-purpose circuit board connections

Headers, Male Pins Procurement Notes

Verify the specific package variant and lever orientation against the official datasheet before procurement. Confirm that the 2.54 mm pitch and 40-pin count match the target PCB footprint requirements. Ensure compatibility with mating connectors regarding current ratings and voltage specifications to prevent operational failure.

Headers, Male Pins Selection Notes

Select this component when a robust, right-angle connection is required for high-density applications. The integrated lever simplifies assembly and ensures secure engagement. Verify that the through-hole mounting style aligns with the manufacturing process and mechanical constraints of the final enclosure design.

Headers, Male Pins Part Context

This header belongs to the WR-BHD series, which provides various pin counts and pitch options from Würth Elektronik. These connectors are engineered for durability and ease of use in mass production environments. The series supports both standard and specialized configurations for diverse electronic integration needs.

Headers, Male Pins Replacement Considerations

No direct substitute part numbers are confirmed in the provided documentation. Evaluate alternative headers based on matching pitch, contact count, and mechanical dimensions if replacement is necessary.
