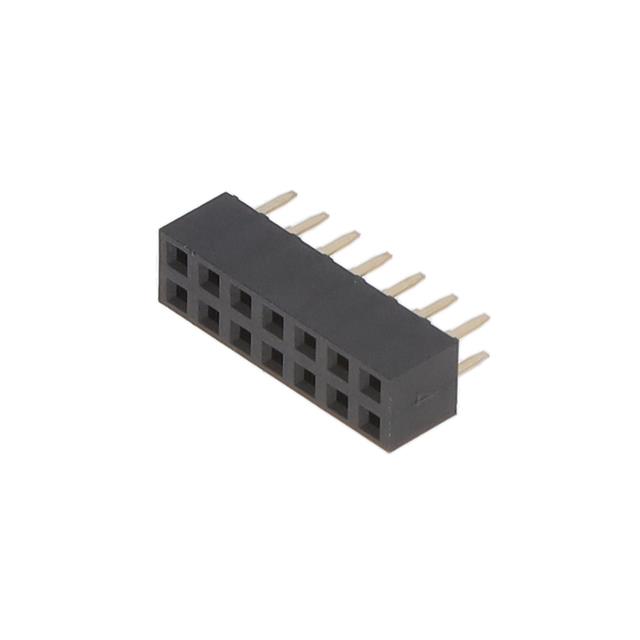

62001421821

62001421821 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is WR-PHD 2.00 MM DUAL SOCKET HEADE. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 62001421821

• Description：WR-PHD 2.00 MM DUAL SOCKET HEADE
• Series：WR-PHD
• Mfr：Würth Elektronik
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：14
• Number of Positions Loaded：All
• Pitch - Mating：0.079" (2.00mm)
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Insulation Color：Black
• Insulation Height：0.169" (4.30mm)
• Contact Length - Post：0.106" (2.69mm)
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：2A
• Voltage Rating：200VAC

Headers, Receptacles, Female Sockets datasheet and documents for 62001421821
