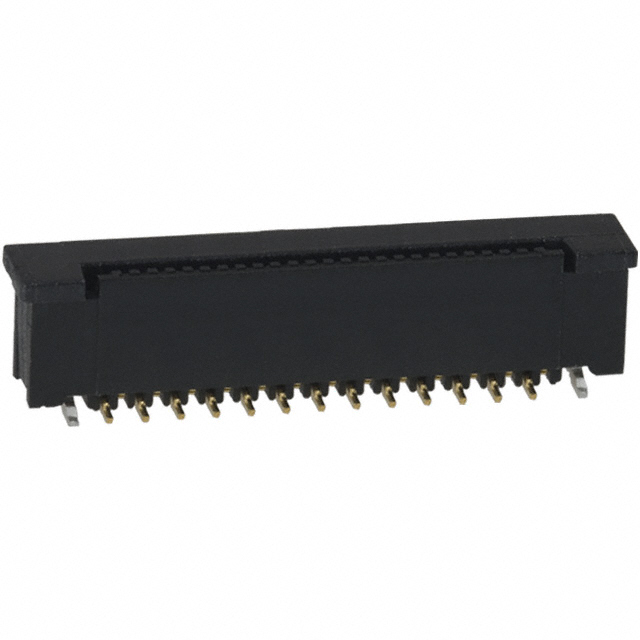

62674-251121ALF

62674-251121ALF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC VERT 25POS 0.5MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 62674-251121ALF

• Description：CONN FFC VERT 25POS 0.5MM SMD
• Series：SFV-S
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：25
• Pitch：0.020" (0.50mm)
• Termination：Kinked Pin
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.161" (4.10mm)
• Locking Feature：-
• Cable End Type：Straight or Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Plastic, Glass Filled
• Actuator Material：Plastic, Glass Filled
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-55°C ~ 105°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 62674-251121ALF
