633V13306A2T

Oscillators Overview

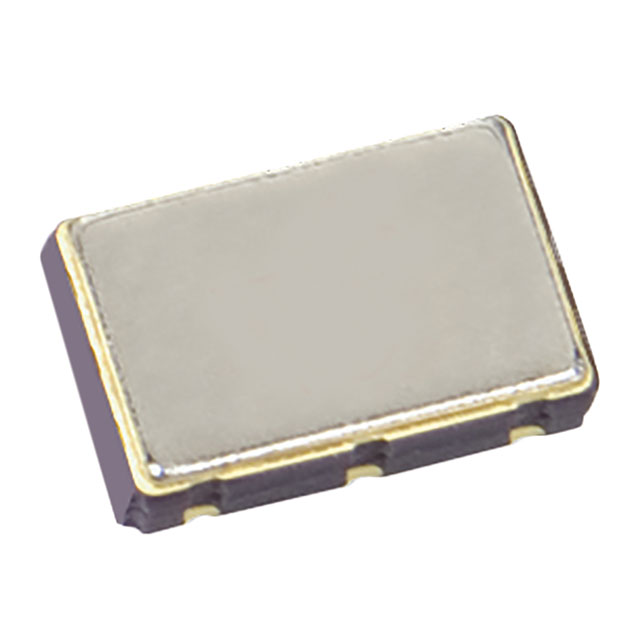

The CTS-Frequency Controls 633V13306A2T is a standard crystal oscillator (XO) operating at a frequency of 133 MHz. It utilizes LVDS output signaling and requires a 2.5V supply voltage with enable/disable functionality. The component is housed in a compact 6-SMD, no-lead package measuring 3.20mm x 2.50mm x 1.00mm maximum height. Designed for surface mount installation, it supports an operating temperature range of -20°C to 70°C.

Oscillators Feature Summary

• LVDS differential output interface for high-speed signal integrity
• Integrated enable and disable control function
• Compact 6-SMD no-lead surface mount packaging

Oscillators Applications

• Wireless infrastructure systems
• Wireline core networking equipment
• High-performance clock distribution networks

Oscillators Procurement Notes

Verify the specific output type and supply voltage requirements against the official datasheet before procurement. Confirm that the LVDS output and 2.5V operation align with the target circuit design. Ensure the 6-SMD package dimensions fit within the designated PCB footprint constraints. Check for any specific handling instructions regarding the no-lead solder termination style.

Oscillators Selection Notes

Select this component when LVDS outputs are required for noise immunity in high-frequency applications. The 2.5V supply voltage must be compatible with the system power rails. Consider the -20°C to 70°C industrial temperature range for environmental suitability. The enable/disable feature allows for power management strategies in the final design.

Oscillators Part Context

This part belongs to the 633 series of ultra-low phase jitter clock oscillators from CTS-Frequency Controls. The series offers various output types including LVPECL, LVDS, and HCMOS. These oscillators are designed as mature timing solutions for demanding synchronization applications in telecommunications and data infrastructure.

Oscillators FAQ

What is the output signal type for the 633V13306A2T?

The 633V13306A2T features an LVDS (Low Voltage Differential Signaling) output.

Does this oscillator support power control?

Yes, the component includes an enable and disable function for power management.
