Product Detailed Parameters
- Description：INDUCTOR FIXED 68UH TYP D73F SMD
- Series：D73F
- Mfr：Toko America Inc.
- Package：Cut Tape (CT)
- Type：-
- Material - Core：-
- Inductance：-
- Tolerance：-
- Current Rating (Amps)：-
- Current - Saturation (Isat)：-
- Shielding：-
- DC Resistance (DCR)：-
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.299" L x 0.299" W (7.60mm x 7.60mm)
- Height - Seated (Max)：0.138" (3.50mm)
- Features：-
Download product information
Overview

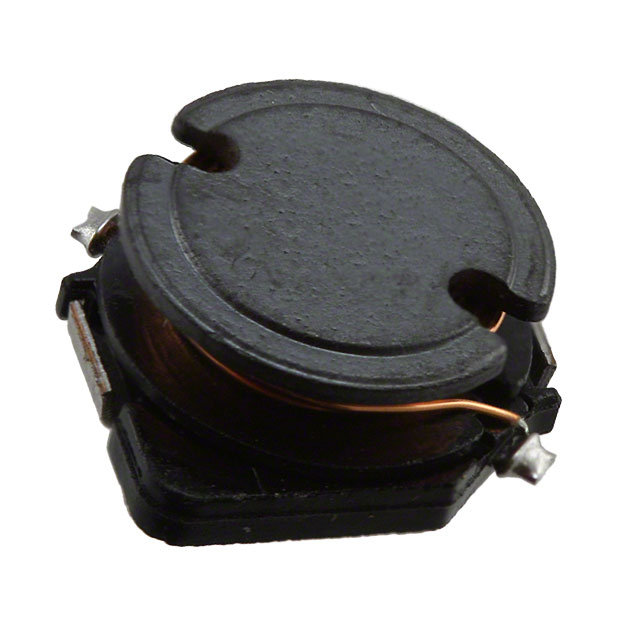

The 636FY-680M=P3 is a fixed surface-mount inductor from the D73F series manufactured by Toko America Inc. It features an inductance of 68 µH with a tolerance of 20%. The component has a maximum DC resistance of 600 mΩ and a rated current of 490 mA. Its physical dimensions are 7.60 mm x 7.60 mm, designed for standard surface mount assembly processes.
Feature Summary
- Fixed inductance value suitable for general-purpose filtering applications
- Surface mount package design for automated PCB assembly
- Compact footprint compatible with space-constrained circuit boards
Applications
- General purpose signal filtering
- Power supply input/output stages
- Electronic circuit board integration
Procurement Notes
Verify the exact part number including the suffix to ensure correct series identification. Confirm that the manufacturer is Toko America Inc. and check datasheet specifications for electrical parameters such as inductance and current rating before procurement. Ensure compatibility with surface mount assembly requirements.
Selection Notes
Select this component when a 68 µH inductance with 490 mA current handling is required in a compact SMD form factor. Consider the 600 mΩ DC resistance impact on efficiency. Compare against alternative series like D73C if different mechanical or electrical characteristics are needed for the specific application design.
Part Context
This component belongs to the D73F series of fixed inductors produced by Toko America Inc. The series offers various inductance values in a standardized surface mount package. It is categorized under passive electronic components used for energy storage and filtering in modern electronics manufacturing.
Replacement Considerations
The 636CY-680M=P3 is a documented substitute within the same manufacturer's portfolio, belonging to the D73C series. Verify dimensional and electrical compatibility before substitution.
