647H2505C2T

Oscillators Overview

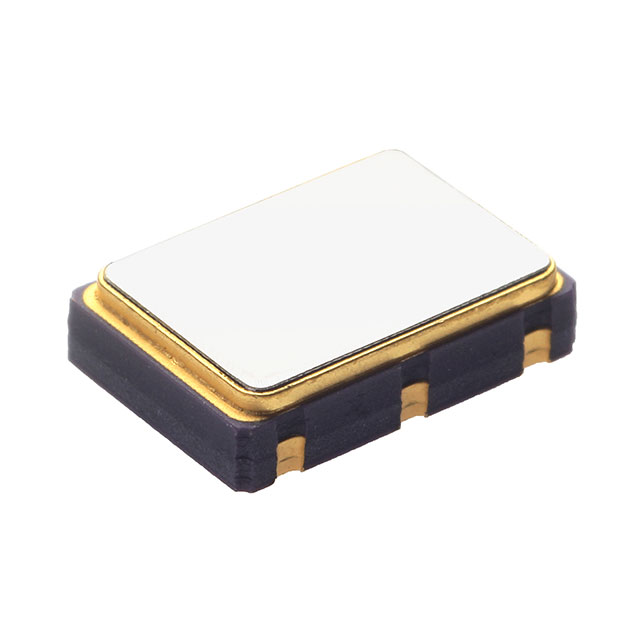

The CTS-Frequency Controls 647H2505C2T is a standard clock oscillator operating at 125 MHz with HCSL output format. It functions on a 2.5V supply voltage, drawing a maximum current of 60 mA. The unit features a frequency stability of ±25 ppm and includes an enable/disable control function. It is housed in a 6-SMD, no-lead package measuring 7.00 mm x 5.00 mm x 1.65 mm. The device supports surface mount installation and operates within a temperature range of -20°C to +70°C.

Oscillators Feature Summary

• Provides stable 125 MHz timing signals via HCSL output interface
• Integrates enable/disable functionality for power management
• Designed for surface-mount assembly in compact electronic systems

Oscillators Applications

• High-speed digital signal processing circuits
• Data communication equipment requiring precise clocking
• Industrial control systems needing reliable timing sources

Oscillators Procurement Notes

Verify the specific suffix codes against official CTS documentation to ensure correct voltage and output specifications. Confirm that the required operating temperature range aligns with the component's rated limits for your application environment. Cross-reference the package dimensions with your PCB footprint design to guarantee mechanical compatibility during assembly.

Oscillators Selection Notes

Select this model when a 125 MHz frequency with HCSL outputs is required for high-speed interfaces. Ensure the system operates within the specified 2.5V supply range and the -20°C to +70°C temperature window. Consider the 6-SMD package size for space-constrained designs where surface mounting is preferred over through-hole alternatives.

Oscillators Part Context

This component belongs to the 647H series of standard clock oscillators from CTS-Frequency Controls. The series is characterized by its use of HCSL output formats, which are suitable for high-speed data transmission applications. The 647H series generally offers various frequency options and packaging configurations to meet diverse industrial and commercial timing requirements.
