64901221122

$1.22

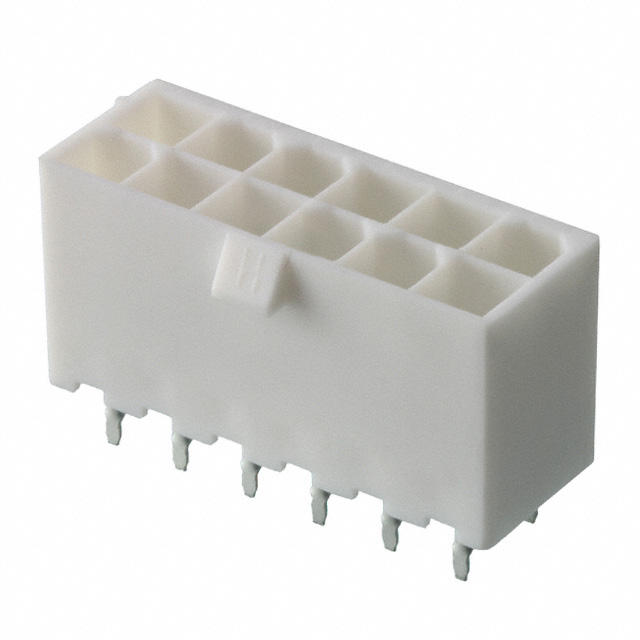

Description：CONN HEADER VERT 12POS 4.2MM
Series：WR-MPC4
Mfr：Würth Elektronik
Package：Tray

SKU:513bdcea6388 Category: Headers, Male Pins Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

64901221122 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is CONN HEADER VERT 12POS 4.2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 64901221122

Description：CONN HEADER VERT 12POS 4.2MM
Series：WR-MPC4
Mfr：Würth Elektronik
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：White
Current Rating (Amps)：6A
Voltage Rating：600V

Headers, Male Pins datasheet and documents for 64901221122

64901221122

Headers, Male Pins Overview

The Würth Elektronik part number 64901221122 is a dual-row header connector from the WR-MPC4 series. It features a 4.2 mm pitch and contains 12 contacts arranged in two rows. The component is designed for board-to-wire applications with a vertical orientation and through-hole solder termination. It supports a rated voltage of 600 V ac and a current rating ranging from 6 to 9 A. The housing includes a cover, and the contacts are made of copper alloy.

Headers, Male Pins Feature Summary

Designed for high current applications within limited space constraints
Includes a protective cover over the contact area
Vertical orientation facilitates direct board mounting

Headers, Male Pins Applications

Battery charger internal connections
High current power supply interfaces
General electronic equipment requiring robust power links

Headers, Male Pins Procurement Notes

Verify the specific pin configuration and mating counterpart compatibility before ordering. Ensure that the selected PCB footprint matches the mechanical dimensions specified in the official datasheet. Confirm that the operating environment temperature range aligns with the component's thermal ratings to maintain reliable electrical performance during operation.

Headers, Male Pins Selection Notes

Select this component when high current capacity up to 9 A is required in a compact form factor. The 4.2 mm pitch provides sufficient spacing for safety and manufacturing tolerance. Consider the through-hole installation method for mechanical stability. Verify that the 600 V ac rating meets the system's insulation requirements.

Headers, Male Pins Part Context

This connector belongs to the WR-MPC4 series, which focuses on miniaturized power solutions. The series is engineered to handle significant current loads while maintaining a small profile. It is commonly utilized in applications where space efficiency and electrical reliability are critical priorities for the overall system design.
