64901621122

Headers, Male Pins Overview

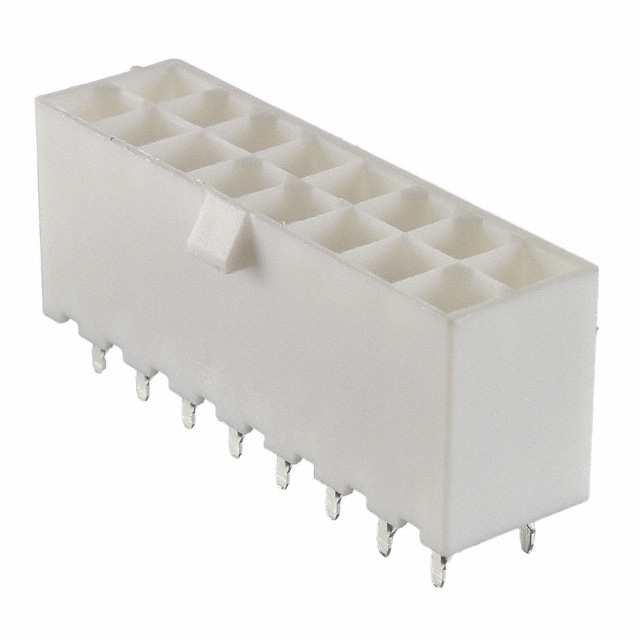

The Würth Elektronik 64901621122 is a WR-MPC4 series rectangular power connector designed for wire-to-board applications. It features a dual-row header configuration with 16 contacts and a 4.20mm pitch spacing. The component utilizes through-hole termination for secure PCB mounting in vertical orientation. Rated for 600V and up to 69.0A, it employs tin-plated copper alloy contacts within a white polyamide (PA66) insulation body. The connector includes a four-wall shielded cover and operates reliably within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Dual-row vertical header design with 4.20mm pitch spacing
• High current capacity rated at 69.0A per contact
• Integrated four-wall shielded cover for protection
• Through-hole termination with locking pin rail mechanism

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control system wiring
• Power distribution modules
• Heavy-duty circuit board connections

Headers, Male Pins Procurement Notes

Verify the specific part number against official Würth Elektronik documentation to ensure compatibility with required current ratings and mechanical constraints. Confirm that the through-hole vertical mounting style aligns with the target PCB layout. Check for any recent product change notices or end-of-life announcements directly from the manufacturer before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when high current carrying capability and robust mechanical stability are required for wire-to-board connections. The 4.20mm pitch allows for substantial conductor sizes, while the dual-row arrangement maximizes contact density. Ensure the application environment stays within the specified -40°C to 105°C operating temperature range for optimal performance.

Headers, Male Pins Part Context

This connector belongs to the WR-MPC4 series, which provides reliable interconnection solutions for demanding environments. The series is characterized by its high current ratings and durable construction. Würth Elektronik designs these components to meet rigorous industrial standards, ensuring long-term reliability in critical electronic assemblies across various global markets.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users requiring alternative components should consult official Würth Elektronik catalogs for comparable WR-MPC4 variants with different contact counts or orientations.
