6530BP44A1190001E

Overview

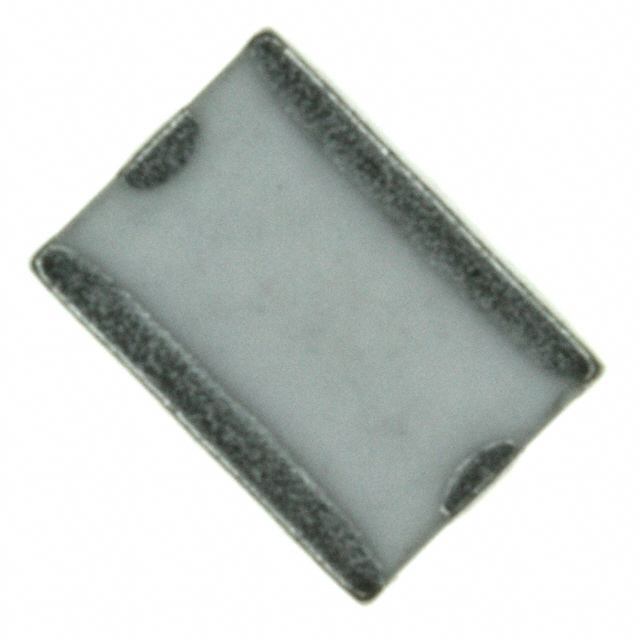

The 6530BP44A1190001E is a ceramic bandpass RF filter manufactured by Johanson Technology Inc. Designed for surface mount installation in the 1812 (4532 metric) package, it operates at a center frequency of 6.525 GHz with a bandwidth of 2.3 dB. The component exhibits an insertion loss of 2.3 dB and a ripple of 1.9 dB. It complies with RoHS3 standards and features a maximum height of 0.087 inches.

Feature Summary

• High rejection performance suitable for demanding RF environments
• Compact 1812 surface mount footprint for space-constrained designs
• Integrated passive construction for reliable signal conditioning

Applications

• WiFi 6 systems operating in the 5925-7125 MHz range
• Unlicensed National Information Infrastructure (U-NII) bands
• Wireless local area network (WLAN) infrastructure

Procurement Notes

Verify the specific suffix configuration against the manufacturer's current global part numbering change documentation to ensure functional equivalence. Confirm that the 1812 package dimensions align with the target PCB land pattern. Check for any regional export control classifications or RoHS3 compliance certificates required for the destination market before finalizing procurement orders.

Selection Notes

Select this component when a 6.525 GHz center frequency with 2.3 dB bandwidth is required for WiFi 6 applications. The 1812 package size offers a balance between electrical performance and board space efficiency. Ensure the design accommodates the specified 2.3 dB insertion loss and 1.9 dB ripple characteristics within the system link budget constraints.

Part Context

This component belongs to Johanson Technology's BP series of integrated passive devices. These filters utilize proprietary ceramic technology to provide high Q-factor performance in small form factors. The series is engineered specifically for modern wireless communication standards requiring precise frequency selection and out-of-band rejection.

Replacement Considerations

The legacy part number 6530BP44A1190 serves as the direct predecessor. Verify that the updated suffix does not alter the electrical specifications or physical dimensions before substituting in existing designs.
