6535BP46A1180001E

Overview

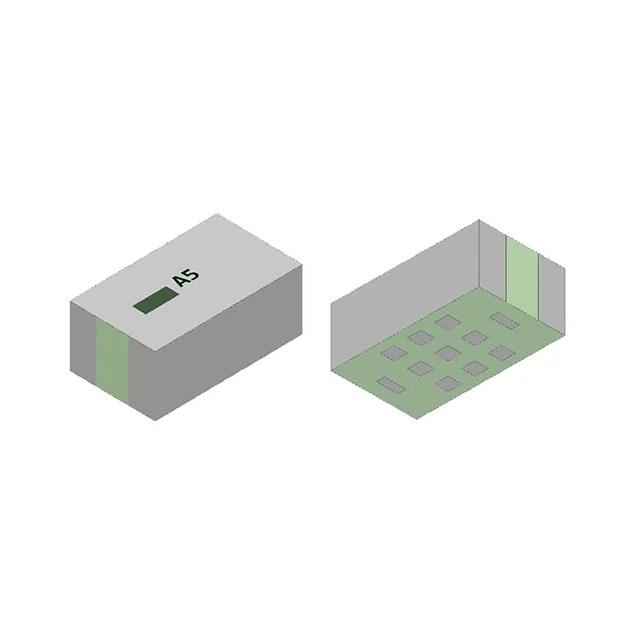

The 6535BP46A1180001E is a ceramic bandpass filter manufactured by Johanson Technology Inc. It operates with a center frequency of 6.535 GHz and provides a bandwidth of 1.18 GHz, covering the range from 5945 MHz to 7125 MHz. The component exhibits an insertion loss of 3.6 dB and is housed in a 10-SMD package.

Feature Summary

• Designed for Wi-Fi 6E and Wi-Fi 7 coexistence applications
• High rejection ceramic construction for improved signal integrity
• Optimized for reducing RF interference and unwanted noise

Applications

• Wi-Fi 6E systems
• Wi-Fi 7 systems
• UNII band passband applications

Procurement Notes

Verify the specific ordering suffix and package configuration against the manufacturer's official datasheet before procurement. Confirm that the component meets all required environmental and electrical specifications for the intended design implementation.

Selection Notes

Select this component for designs requiring precise filtering within the 5945 MHz to 7125 MHz range. Ensure the 10-SMD footprint aligns with the PCB layout constraints and that the 3.6 dB insertion loss is acceptable for the system link budget requirements.

Part Context

This part belongs to Johanson Technology's high-frequency ceramic solutions portfolio. It is engineered to address EMI and RF interference challenges in modern wireless communication devices, supporting advanced Wi-Fi standards in compact form factors.

Replacement Considerations

No public confirmed substitute part numbers are available for this component.
