653E7773I3T

Oscillators Overview

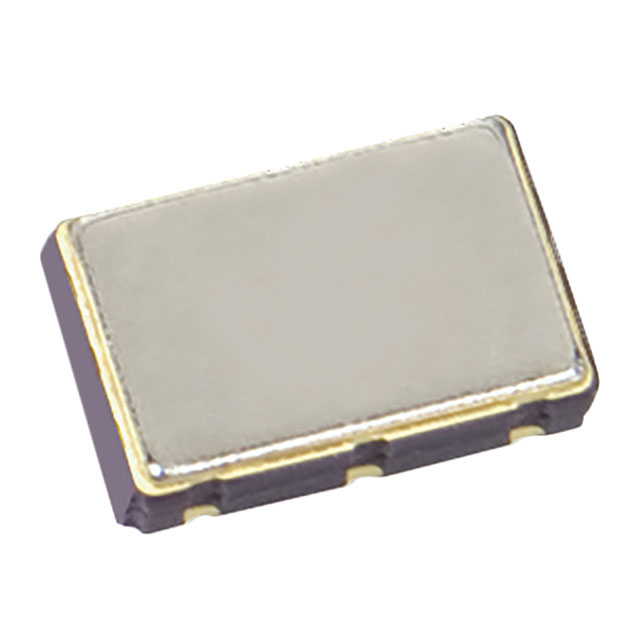

The CTS-Frequency Controls 653E7773I3T is a crystal oscillator generating a frequency of 77.76 MHz with an LVPECL output signal. It operates on a 3.3V supply voltage and features a frequency stability of ±50ppm across an industrial temperature range of -40°C to +85°C. The device supports enable/disable functionality and draws a maximum supply current of 88mA. It is housed in a compact 6-SMD, no-lead package measuring 5.00mm x 3.20mm x 1.40mm.

Oscillators Feature Summary

• Generates precise 77.76 MHz clock signals using LVPECL differential output for high-speed data transmission.
• Supports active enable and disable control states to manage power consumption during system idle periods.
• Maintains stable operation within extended industrial temperature ranges suitable for harsh environments.

Oscillators Applications

• High-speed serial communication interfaces requiring precise clock synchronization
• Data acquisition systems utilizing ADC/DAC timing references
• Industrial networking equipment operating in extreme temperature conditions

Oscillators Procurement Notes

Verify the specific output configuration (LVPECL) and supply voltage requirements against the target circuit design before procurement. Confirm that the component meets the required frequency stability specifications for the application. Ensure the selected package size fits the available PCB footprint constraints. Check for any recent manufacturer notices regarding product changes or obsolescence status prior to finalizing orders.

Oscillators Selection Notes

Select this component when LVPECL outputs are required for noise immunity in high-frequency applications. Consider the ±50ppm stability requirement relative to system jitter budgets. Evaluate the 88mA current draw against available power rails. Compare physical dimensions against alternative packages if space is limited. Verify compatibility with existing clock distribution networks.

Oscillators Part Context

This part belongs to the 653 series of surface-mount oscillators from CTS-Frequency Controls. The series offers various frequencies and output types in standardized small footprints. This specific model provides a common networking frequency with robust industrial temperature ratings.

Oscillators Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for potential cross-reference options if this specific variant is unavailable.
