655L156H5C2T

Oscillators Overview

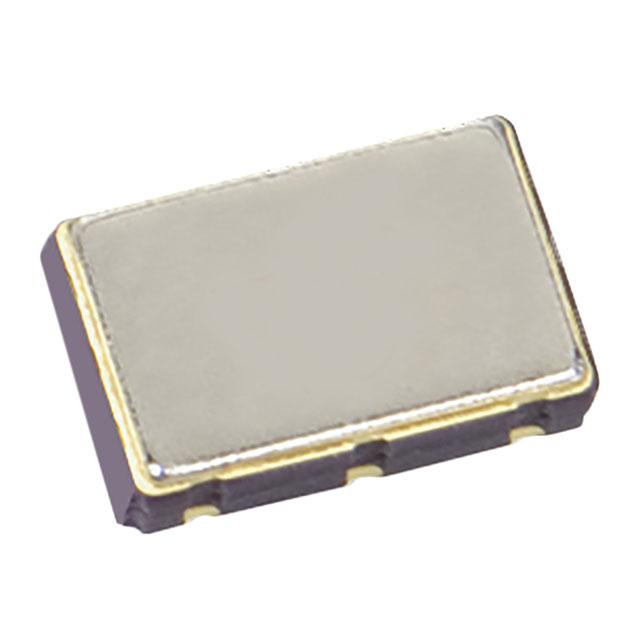

The CTS-Frequency Controls 655L156H5C2T is a standard crystal oscillator (XO) operating at 156.257812 MHz. It features an LVDS output format and operates on a 2.5V supply voltage. The device supports enable/disable functionality and is housed in a compact 6-SMD, no-lead package measuring 5.00mm x 3.20mm with a maximum height of 1.40mm. It offers a frequency stability of ±25ppm and functions within a temperature range of -40°C to 85°C. Maximum current consumption is 66mA.

Oscillators Feature Summary

• Provides precise clock signals via LVDS differential output for high-speed digital applications.
• Supports power management through integrated enable and disable control pins.
• Utilizes a surface-mount crystal resonator for stable frequency generation.

Oscillators Applications

• High-speed serial communication interfaces requiring low jitter clocks
• Data acquisition systems needing precise timing references
• Telecommunications equipment utilizing standard clock frequencies

Oscillators Procurement Notes

Verify the specific frequency code and output configuration against project requirements before ordering. Confirm that the LVDS output compatibility matches the receiving circuitry. Ensure the operating temperature range meets environmental specifications. Check for RoHS compliance status if required by regulatory standards. Validate package dimensions for PCB footprint compatibility.

Oscillators Selection Notes

Choose this model when LVDS signaling is required for noise immunity in high-frequency designs. Consider the ±25ppm stability for general-purpose timing needs. Evaluate the 66mA current draw against power budget constraints. Select based on the -40°C to 85°C industrial temperature rating for broader operational flexibility compared to commercial grades.

Oscillators Part Context

This component belongs to the 655 series of ultra-low phase jitter clock oscillators from CTS-Frequency Controls. The series is designed for demanding applications requiring stable frequency sources. The 655L variant specifically denotes LVDS output options within this family, offering robust signal integrity for sensitive digital circuits.

Oscillators FAQ

What is the output format of the 655L156H5C2T?

The output format is LVDS (Low Voltage Differential Signaling).

Does the 655L156H5C2T support power control?

Yes, it includes enable and disable functionality for power management.
