6609020-6

Overview

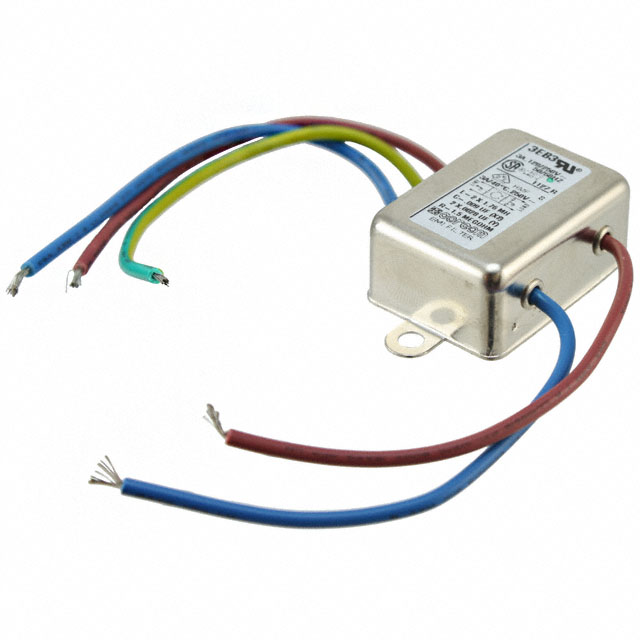

The TE Connectivity Corcom Filters 6609020-6 is a single-phase EMC/EMI line filter designed for AC power line noise reduction. It operates at 250 VAC and supports a current rating of 3 A at 50/60 Hz. The component features wire lead input and output connections, facilitating integration into various electrical systems. Certified by CSA, UL, and VDE, it ensures compliance with international safety standards.

Feature Summary

• Reduces electrical noise and interference on AC power lines
• Single-phase configuration for targeted EMI/RFI suppression
• Certified for global safety compliance

Applications

• General electronic equipment requiring EMI suppression
• Industrial control systems
• Medical devices

Procurement Notes

Verify the specific datasheet version and certification marks (CSA, UL, VDE) against your regional regulatory requirements before procurement. Confirm that the wire lead termination style matches your assembly process. Ensure the 3 A current rating and 250 VAC voltage specifications align with your system's operational parameters to prevent performance degradation or safety hazards.

Selection Notes

Select this component when a single-phase, low-current (3 A) EMI filter with wire leads is required. It is suitable for applications needing certified noise suppression without panel-mount connectors. Consider the physical dimensions and lead length during PCB or chassis layout planning to ensure proper fit and strain relief.

Part Context

This part belongs to the Corcom B series of single-phase filters from TE Connectivity. It is internally identified as TE Internal # 6609020-6. The product is categorized under Power Line Filters and is designed for commercial and industrial use where compact EMI suppression is necessary.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct replacements or cross-references if this specific model is unavailable.
