6609020-7

Overview

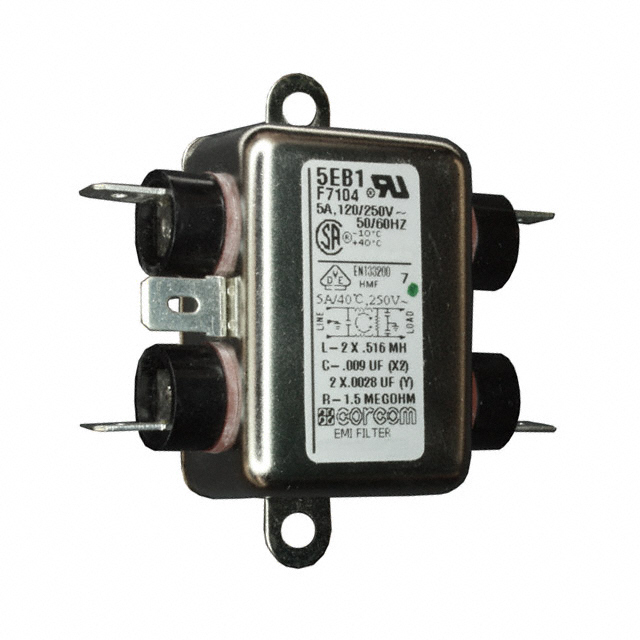

The TE Connectivity Corcom Filters model 6609020-7 is a single-phase EMC/EMI line filter designed for commercial applications. It features a rated current of 5 A and operates at 250 VAC, 50/60 Hz. The unit utilizes quick connect terminals with a 0.187-inch (4.7 mm) pitch for circuit attachment. Installation is achieved via flange mounting into a rectangular panel opening measuring 30.48 mm by 22.86 mm. The component includes an integrated fuse holder but does not include the fuse itself. It carries CSA, UL, and VDE certifications.

Feature Summary

• Provides wide-band RFI suppression suitable for high impedance loads at low current levels
• Incorporates a drawer-style fuse holder for convenient maintenance
• Designed to meet low leakage current requirements specified by VDE standards

Applications

• Commercial equipment requiring EMI/RFI filtering
• High impedance load circuits
• General purpose power line filtering

Procurement Notes

Verify the specific terminal pitch and panel cutout dimensions against your chassis design before ordering. Confirm whether the system requires the inclusion of a separate fuse, as this component supplies only the holder. Ensure the operating voltage and current ratings align with your application's electrical specifications to maintain compliance with safety certifications.

Selection Notes

Select this model when a compact, single-stage filter is needed for 5 A circuits. It is appropriate for applications requiring flange mounting and quick-connect wiring. Consider alternative series if higher current capacity or different terminal styles are required. Verify that the low leakage current characteristic meets specific regulatory needs for sensitive electronic environments.

Part Context

This component belongs to the TE Connectivity Corcom B Series of RFI filters. The series is engineered for general-purpose commercial use, focusing on effective noise suppression in space-constrained installations. It shares design characteristics with other Corcom flange-mounted units, offering standardized mounting interfaces and certification approvals for global deployment.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
