Overview

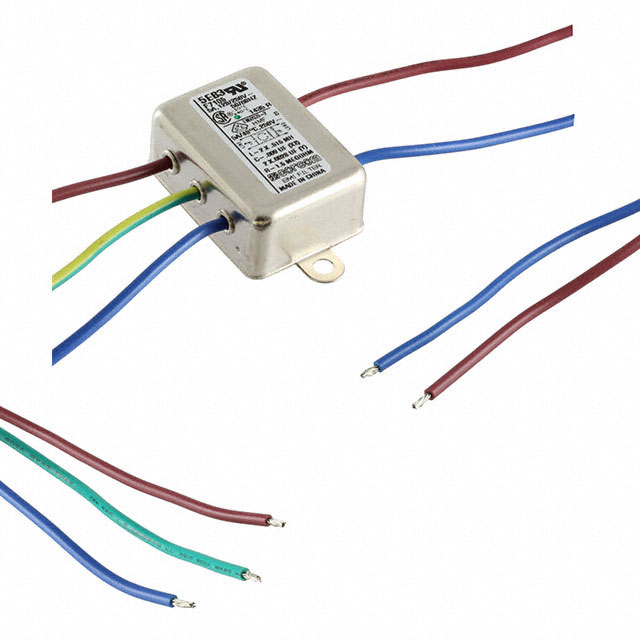

The TE Connectivity Corcom Filters 6609020-8 is a single-phase EMC/EMI line filter designed for AC power applications. It supports a rated voltage of 250VAC and operates at frequencies of 50Hz or 60Hz with a current rating of 5A. The unit features a single-stage configuration and utilizes wire lead termination for circuit connection. Designed for panel mounting, this component provides electromagnetic interference suppression in general-purpose electronic systems.

Feature Summary

• Provides single-stage EMI/RFI noise attenuation for AC power lines
• Features wire lead termination for direct circuit integration
• Supports standard 50Hz and 60Hz AC power frequencies

Applications

• General purpose electronic equipment
• AC power input stages
• Electromagnetic compatibility (EMC) mitigation

Procurement Notes

Verify the specific datasheet version to confirm exact attenuation curves and physical dimensions. Ensure the wire leads are compatible with the target assembly process. Confirm that the 5A current rating meets the system requirements under all operating conditions. Check for any recent product change notices regarding material composition or certification status.

Selection Notes

Select this model when a single-phase, 5A rated filter with wire leads is required. Compare against other SK series variants if different current ratings or mounting styles are needed. Verify that the single-stage performance is sufficient for the specific noise environment. Ensure the panel mounting method aligns with the enclosure design constraints.

Part Context

This component belongs to the TE Connectivity Corcom Filters family, which specializes in power line filters for industrial and commercial applications. The 6609020-8 is part of the broader portfolio offering various configurations for EMI suppression. It shares design principles with other single-phase filters in the series but is distinguished by its specific 5A rating and wire lead termination style.

Replacement Considerations

Consult the official Corcom selector charts for verified substitute part numbers. Cross-reference specifications such as current rating, voltage, and termination type before substitution.
