6609021-2

Overview

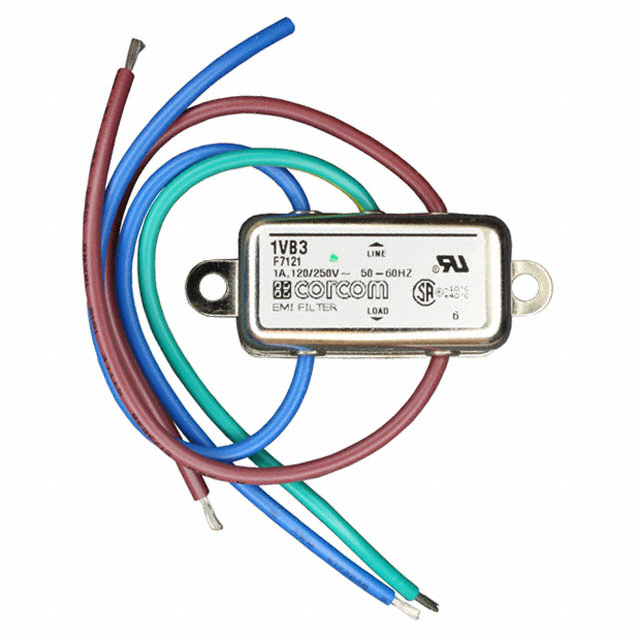

The TE Connectivity Corcom Filters model 6609021-2 is a single-phase EMC/EMI line filter designed for general-purpose applications. It operates at a rated voltage of 250VAC and supports a current rating of 1A within the 50/60Hz frequency range. The component utilizes a single-stage filtering configuration and features wire lead termination for circuit integration. This unit is part of the B series product line.

Feature Summary

• Provides single-stage EMI/RFI noise suppression for AC power lines
• Designed for chassis or panel mounting configurations
• Utilizes wire lead connections for direct circuit attachment

Applications

• General purpose electronic equipment noise reduction
• Single-phase AC power line filtering
• EMC compliance enhancement for low-current devices

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and terminal specifications. Ensure the wire lead type matches the assembly requirements. Confirm regulatory certifications such as UL, CSA, or VDE are valid for the target market. Check for any recent product change notices that may affect compatibility.

Selection Notes

Select this component for applications requiring single-stage filtration with a 1A current capacity. It is suitable for environments operating at 50/60Hz. Consider the wire lead termination style during PCB or harness design. Compare against higher current ratings if load requirements exceed 1A.

Part Context

This filter belongs to the Corcom B series, which offers basic EMI/RFI protection solutions. It serves as a fundamental component for mitigating conducted interference in single-phase systems. The design focuses on essential noise attenuation without complex multi-stage architectures.

Replacement Considerations

The part number 1VB3 is documented as an alternative designation for this component. Verify electrical parameters and physical dimensions before substitution.
