Product Detailed Parameters
- Description：LINE FILTER 250VAC 1A CHASS MNT
- Series：K
- Mfr：TE Connectivity Corcom Filters
- Package：Bag
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：1:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：1.86mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

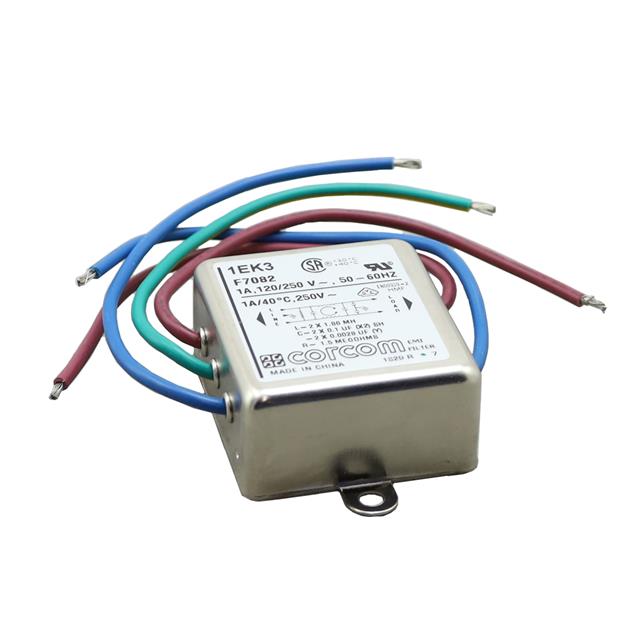

The TE Connectivity Corcom Filters 6609027-2 is a single-phase EMC/EMI power line filter designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current rating of 1A within the 50Hz to 60Hz frequency range. The component utilizes a single-stage filtering configuration and features wire lead termination for circuit integration. Certified by UL, CSA, and VDE, it ensures compliance with commercial electromagnetic interference standards.
Feature Summary
- Provides single-stage EMI/RFI noise suppression for AC power lines
- Features wire lead termination for direct circuit connection
- Designed for secure chassis mounting installation
Applications
- Commercial electronic equipment requiring EMI suppression
- Power entry modules for low-current AC applications
- General-purpose industrial control systems
Procurement Notes
Verify the specific series designation (K) and physical dimensions against the official datasheet before procurement. Confirm that wire lead termination meets the assembly requirements. Ensure the chassis mounting style aligns with the enclosure design. Cross-reference certification marks (UL, CSA, VDE) with regional regulatory needs.
Selection Notes
Select this component for applications requiring 1A capacity and single-stage filtering. Compare against other Corcom series for leakage current and attenuation specifications. Ensure the wire lead termination method suits the PCB or harness design. Verify chassis mounting constraints and available panel space.
Part Context
This part belongs to the Corcom Filters series by TE Connectivity, specializing in EMI/RFI solutions. It is categorized under power line filters for commercial use. The product provides essential noise reduction for sensitive electronics operating on standard AC mains frequencies.
Replacement Considerations
Consult the official Corcom selector chart for verified substitutes. Ensure replacement parts match the 1A rating, 250VAC voltage, and single-stage topology. Verify identical mounting and termination styles to maintain mechanical compatibility.
