6609031-2

Overview

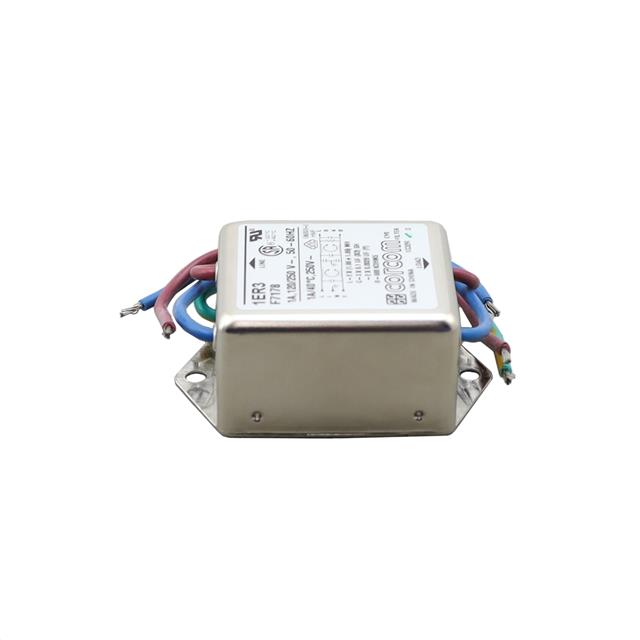

The TE Connectivity Corcom Filters 6609031-2 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration with wire lead termination, rated for 1 A at 250 VAC and operating at 50/60 Hz frequencies.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Wire lead termination for flexible integration
• Chassis mount design for secure installation

Applications

• General electronic equipment requiring EMI/RFI suppression
• Power supply input stages
• Industrial control systems

Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement. Confirm that wire lead specifications match the target assembly requirements. Ensure chassis mounting provisions align with the enclosure design to maintain proper grounding and mechanical stability during operation.

Selection Notes

Select this component when a compact, two-stage solution is required for low-current applications. The wire lead format simplifies wiring in space-constrained environments. Verify that the 1 A rating meets the load requirements and that chassis mounting is feasible within the system design constraints.

Part Context

This part belongs to the TE Connectivity Corcom Filters lineup, specializing in electromagnetic interference mitigation. It serves as a passive component to ensure regulatory compliance by reducing conducted emissions on power lines.

Replacement Considerations

Consult official substitution charts for equivalent two-stage filters with matching current ratings and termination types.
