6609032-6

Overview

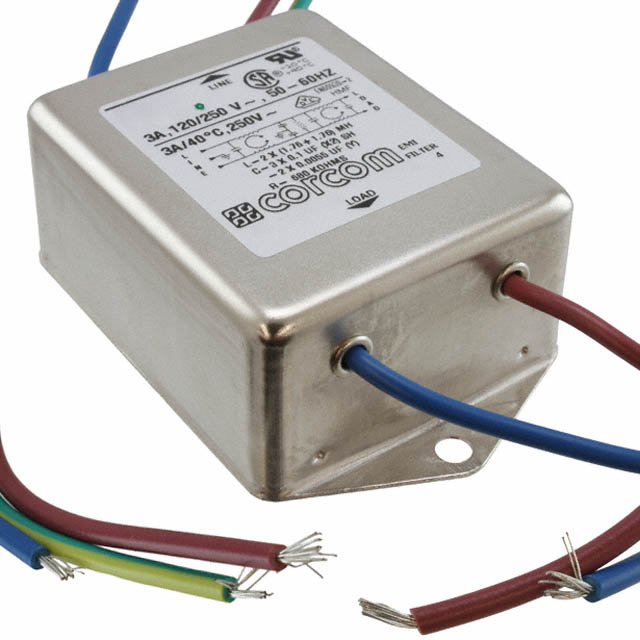

The TE Connectivity Corcom Filters 6609032-6 is a single-phase EMC/EMI power line filter designed for chassis or panel mounting. It features wire lead termination and operates at 50/60Hz with a rated voltage of 250VAC. The component provides two-stage filtering capability with a current rating of 3A. It includes flange mounting hardware for secure installation. Certification bodies include CSA, UL, and VDE.

Feature Summary

• Provides two-stage EMI/RFI attenuation for single-phase AC power lines
• Features wire lead termination for direct circuit integration
• Includes flange mounting design for secure chassis or panel installation

Applications

• Industrial control systems requiring EMI suppression
• Medical equipment power input stages
• Commercial electronic devices needing noise reduction

Procurement Notes

Verify the specific datasheet version for the 6609032-6 part number to confirm exact electrical parameters such as leakage current and inductance values. Ensure the wire lead length and gauge meet your assembly requirements. Confirm that the flange dimensions match your enclosure cutout specifications before procurement.

Selection Notes

Select this component when a two-stage filter solution is required for 3A single-phase applications. Compare against the 10ER1 or 10VS1 models if higher current ratings or different termination styles are needed. Verify that the 250VAC rating aligns with your system's operating voltage and frequency constraints.

Part Context

This component belongs to the TE Connectivity Corcom R series of power line filters. The series offers various configurations for single-phase applications, ranging from one-stage to two-stage filtering. The 6609032-6 specifically utilizes wire leads rather than faston terminals, distinguishing it from other variants in the same family.

Replacement Considerations

Publicly confirmed substitute part numbers for 6609032-6 were not found in the provided source material.
